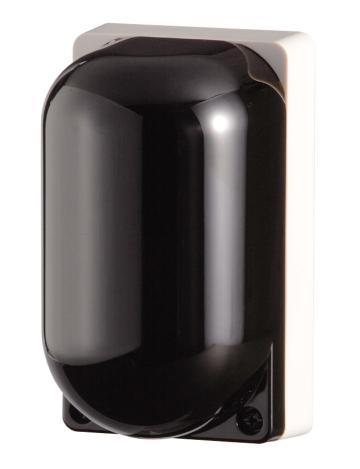

IR-500R Infrared Wireless Receiver

IR-500R Y

The IR-500R Infrared Wireless Receiver is designed for use with the IR-702T Infrared Wireless Tuner. It can be mounted to a wall or an electrical box.

  IR-700 Series

QTY: Add to Request for quote Request for quote
Specification
Power Source 24 V DC (supplied from the IR-702T)
Current Consumption Max. 40 mA
Infrared Detector
Wavelength 870 nm
Carrier Frequency Channel A: 3.100 MHz
Channel B: 3.350 MHz
Reception Angle Vertical: 80゜ (up to 30゜ movable downward)
Horizontal: 80゜ (up to 30゜ movable left or right)
Communication Area Approx. 15 m (50 ft) in a space without any obstacles
Connection Terminal 75 Ω, BNC jack
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity 30 % to 85 %RH (no condensation)
Finish Filter section: Polycarbonate, optical cut filter
Base: ABS resin, off-white
Dimensions 70 (W) × 120 (H) × 72 (D) mm (2.76" × 4.72" × 2.83")
Weight 220 g (0.49 lb) (unit only)
