IR-510R Y

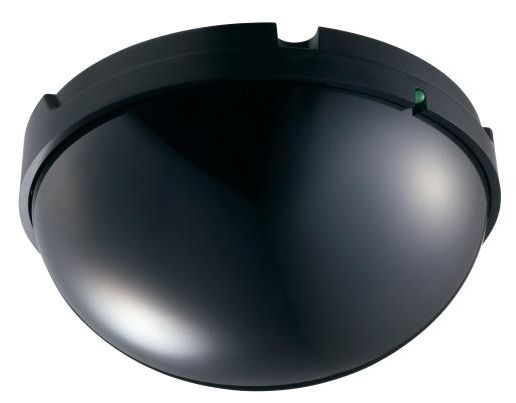

IR-510R Infrared Wireless Receiver

IR-510R Y

The IR-510R Infrared Wireless Receiver is designed for exclusive use with the IR-702T Infrared Wireless Tuner. It can be mounted to a ceiling.

 IR-700 Series

QTY: Add to Request for quote Request for quote
Specification
Power Source 24 V DC (supplied from the IR-702T)
Current Consumption Max. 60 mA
Infrared Detector
Wavelength 870 nm
Carrier Frequency Channel A: 3.100 MHz
Channel B: 3.350 MHz
Communication Area Approx. 7 m (22.97 ft) in radius from the point underneath the unit
(Ceiling height: 2.5 - 3.0 m (8.2 - 9.84 ft), in a space without any obstacle)
Connection Terminal 75 Ω, BNC jack
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity 30 % to 85 %RH (no condensation)
Finish Filter section: Polycarbonate, optical cut filter
Base: ABS resin, black
Dimensions φ120 × 71.3 (H) mm (φ4.72" × 2.81")
Weight 205 g (0.45 lb) (unit only)
Accessory Mounting bracket …1
