IR-520R Y

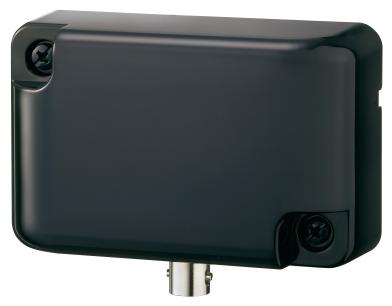

IR-520R Infrared Wireless Receiver

IR-520R Y

The IR-520R Infrared Wireless Receiver is designed for exclusive use with the IR-702T Infrared Wireless Tuner. It can be mounted to a wall or a microphone stand.

 IR-700 Series

QTY: Add to Request for quote Request for quote
Specification
Power Source 24 V DC (supplied from the IR-702T)
Current Consumption Max. 30 mA
Infrared Detector
Wavelength 870 nm
Carrier Frequency Channel A: 3.100 MHz
Channel B: 3.350 MHz
Communication Area Approx. 15 m (50 ft) in a space without any obstacles
Connection Terminal 75 Ω, BNC jack
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity 30 % to 85 %RH (no condensation)
Finish Filter section: Polycarbonate, optical cut filter
Dimensions 84.5 (W) × 63.5 (H) × 32 (D) mm (3.33" × 2.5" × 1.26")
Weight 100 g (0.22 lb) (unit only)
Accessory Stand mounting bracket …1, Bracket mounting screw …2
