IR-200BC

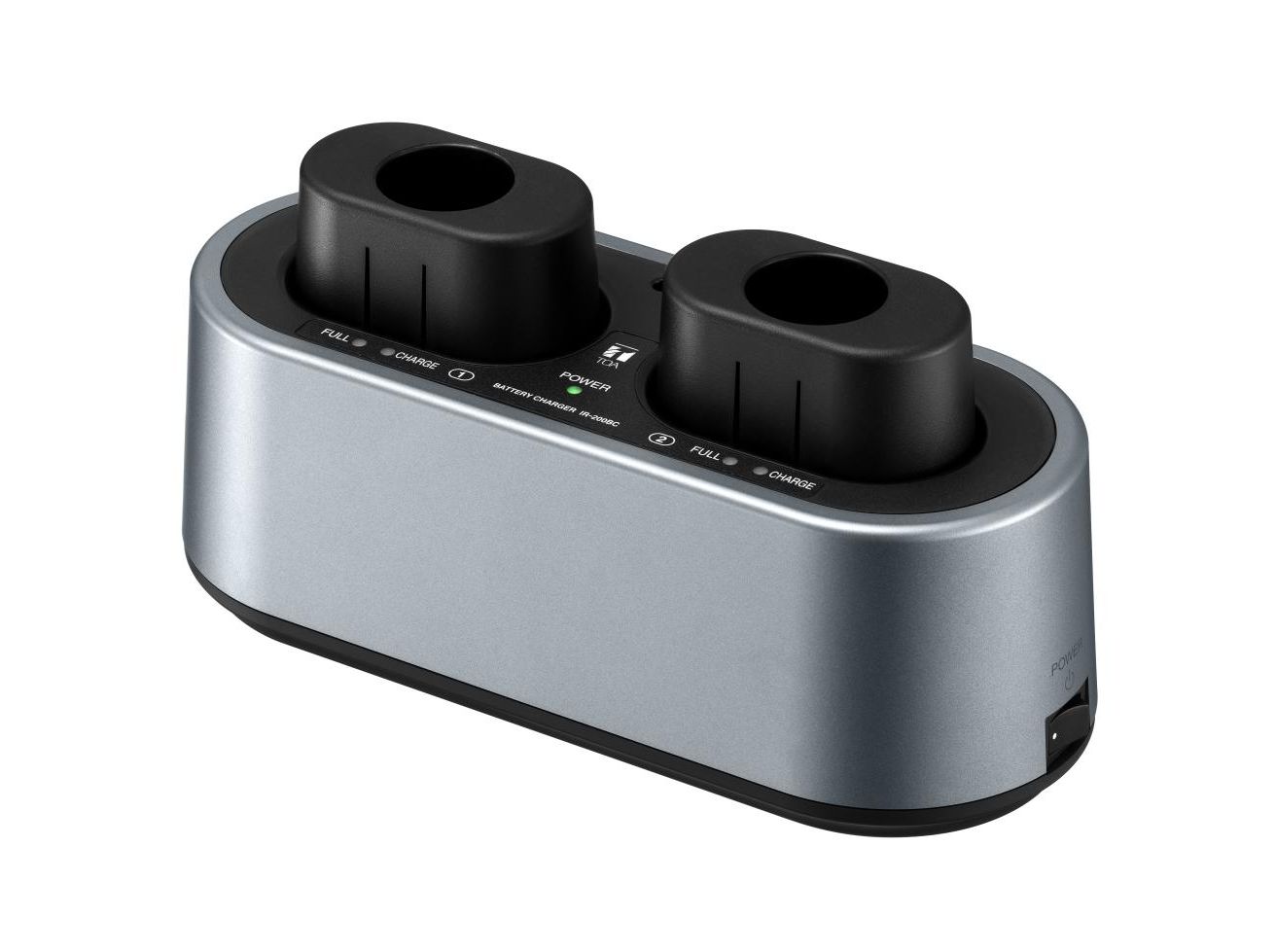

IR-200BC Battery Charger

IR-200BC

The IR-200BC is a dedicated battery charger for the IR-200M and IR-300M Infrared Wireless Microphones. It employs a quick charging system for nickel metal hydride (Ni-MH) batteries, allowing up to 2 infrared wireless microphones to be fully charged within 3 hours.

IR Classroom Brochure    IR-700 Series

QTY: Add to Request for quote Request for quote
Specification
Power Source AC mains, 50/60 Hz (supplied from the included AC adapter (*1))
Power Consumption Max. 2 A
Charging Time Max. 3 h
Number of Wireless Microphone to be Charged Simultaneously 2 pieces (*2)
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity 30 % to 85 %RH
Finish Case: ABS resin, metallic gray, paint, 50 % gloss
Microphone receptacle section: PPE resin, black
Dimensions 238 (W) × 109.5 (H) × 98 (D) mm (9.37" × 4.31" × 3.86")
Weight 635 g (1.4 lb) (unit only, including mounting adapter (accessory))
Accessory Mounting adapter (preinstalled on the unit) …2,
AC adapter (DC cord length: 1.8 m (5.91 ft))(*1) …1,
Power cord (2 m (6.56 ft))(*1) …1
