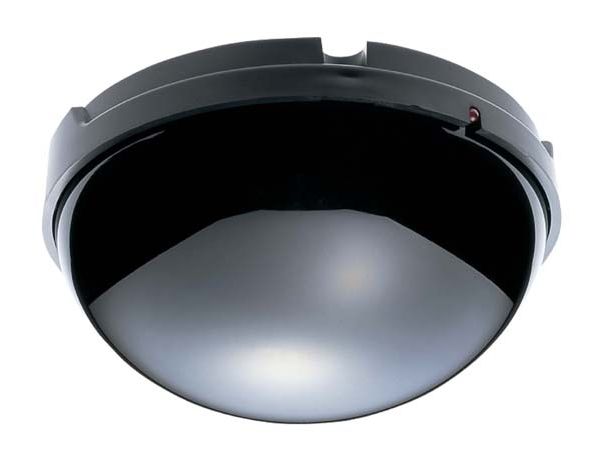

TS-905 Infrared Transmitter/Receiver

TS-905

The TS-905 is an Infrared Transmitter/Receiver of the Infrared Conference system. Since the system is cordless, it can be easily installed and removed. Communications between the TS-905 and conference units are performed by means of infrared signals and the TS-905 permits transmit and receive with the Central unit. It can be mounted not only to the ceiling and wall but on the microphone stand.



Request for BIM Data: https://www.sound-toa.com/rfa_form.html



QTY: Add to Request for quote Request for quote
Specification
Power Source 24 V DC (supplied from the optional TS-900 or TS-800)
Current Consumption Max. 150 mA
Infrared Emitter/Detector
Wavelength 870 nm (AM: Brightness modulation)
Modulation Method Frequency modulation
Carrier Frequency Transmission: Audio channel 1: 7.35 MHz
Audio channel 2: 8.10 MHz
Audio channel 3: 8.55 MHz
Audio channel 4: 9.15 MHz
Control channel: 6.45 MHz
Reception: Base language channel: 1.95 MHz
Translation language channel: 2.25 MHz
Acceptance Angle Vertical: 150゜ (75゜ + 75゜), Horizontal: 360゜
Emission Angle Vertical: 150゜ (75゜ + 75゜), Horizontal: 360゜
Communication Area Approx. 6 - 7 m in radius from the point underneath the unit
(Ceiling height: 2.5 - 4.5 m)
Connection Terminal BNC jack
LED Indicator Power
Operating Temperature 0 ℃ to +40 ℃
Finish Dome: PC resin, visible light cut filter
Base: ABS resin, black
Dimensions φ120 × 71.3 (H) mm
Weight 230 g (unit only)
Accessory Mounting bracket…1, Stand mounting bracket…1,
Stand mounting bracket attaching screw…3, Thread Adapter (U5/16 - NS5/8)…1
Option Microphone stand (The mounting thread size must be U5/16 or NS5/8.)
