YW-1022 Distributor

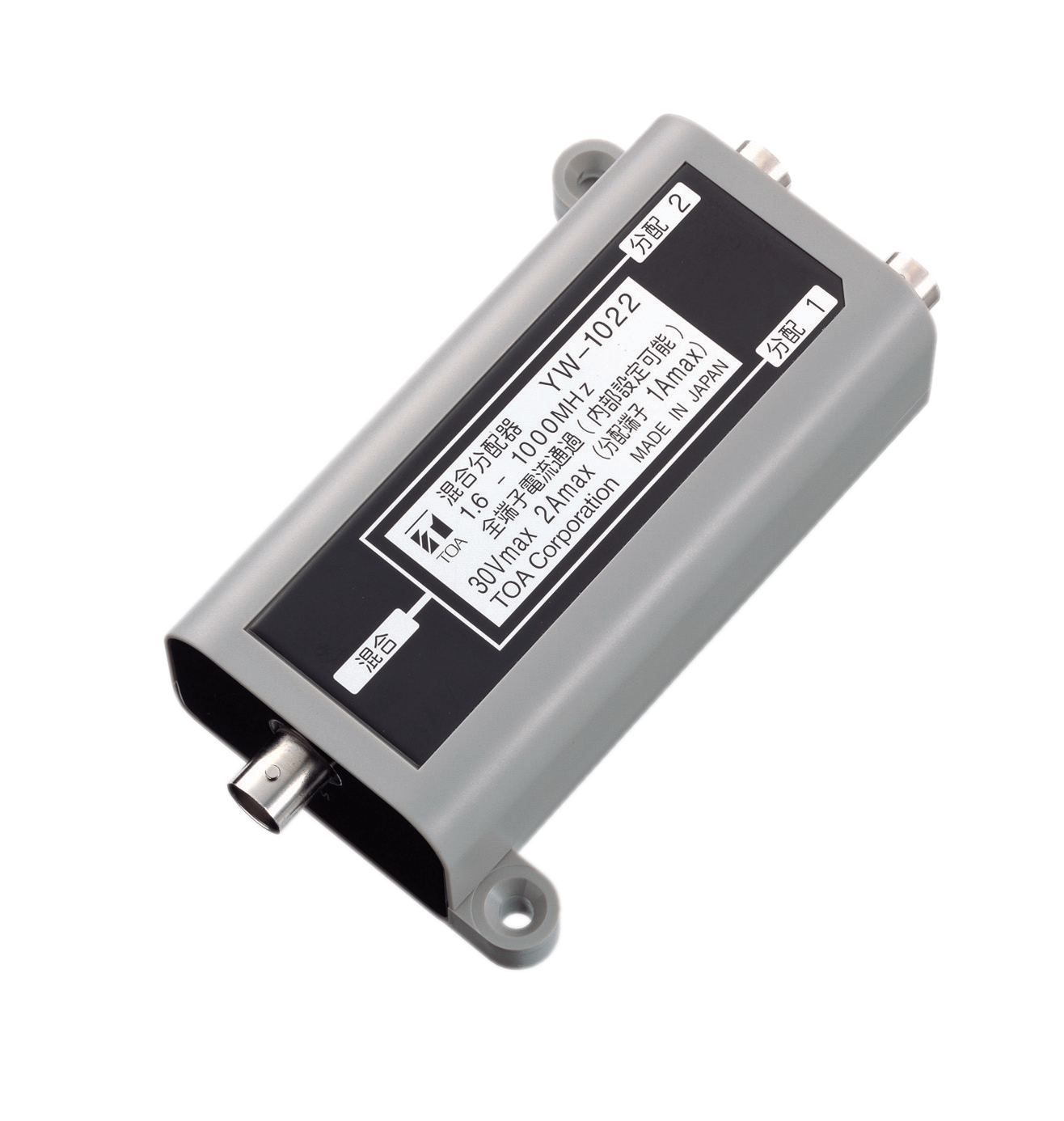

YW-1022

The YW-1022 is a distributor that can work in the frequency range of 1.6 to 1,000 MHz (except 50 to 70 MHz). Power passing type permits easy power supply.

QTY: Add to Request for quote Request for quote
Specification
Frequency Range 1.6 - 1,000 MHz (excluding 50 - 70 MHz)
Distribution Loss 4.5 dB ±3 dB (between the Mixing and each Distribution terminals)
Input/Output Impedance 75 Ω
Coaxial Connector Mixing terminal: BNC jack, power passing type (under 30 V DC, under 2 A)
Distribution 1 and 2 terminals: BNC jack, power passing type (under 30 V DC, under 1 A)
Operating Temperature -10℃ to +50℃
Finish ABS resin, gray
Dimensions 75 (W) × 122 (H) × 34 (D) mm
Weight 105 g
