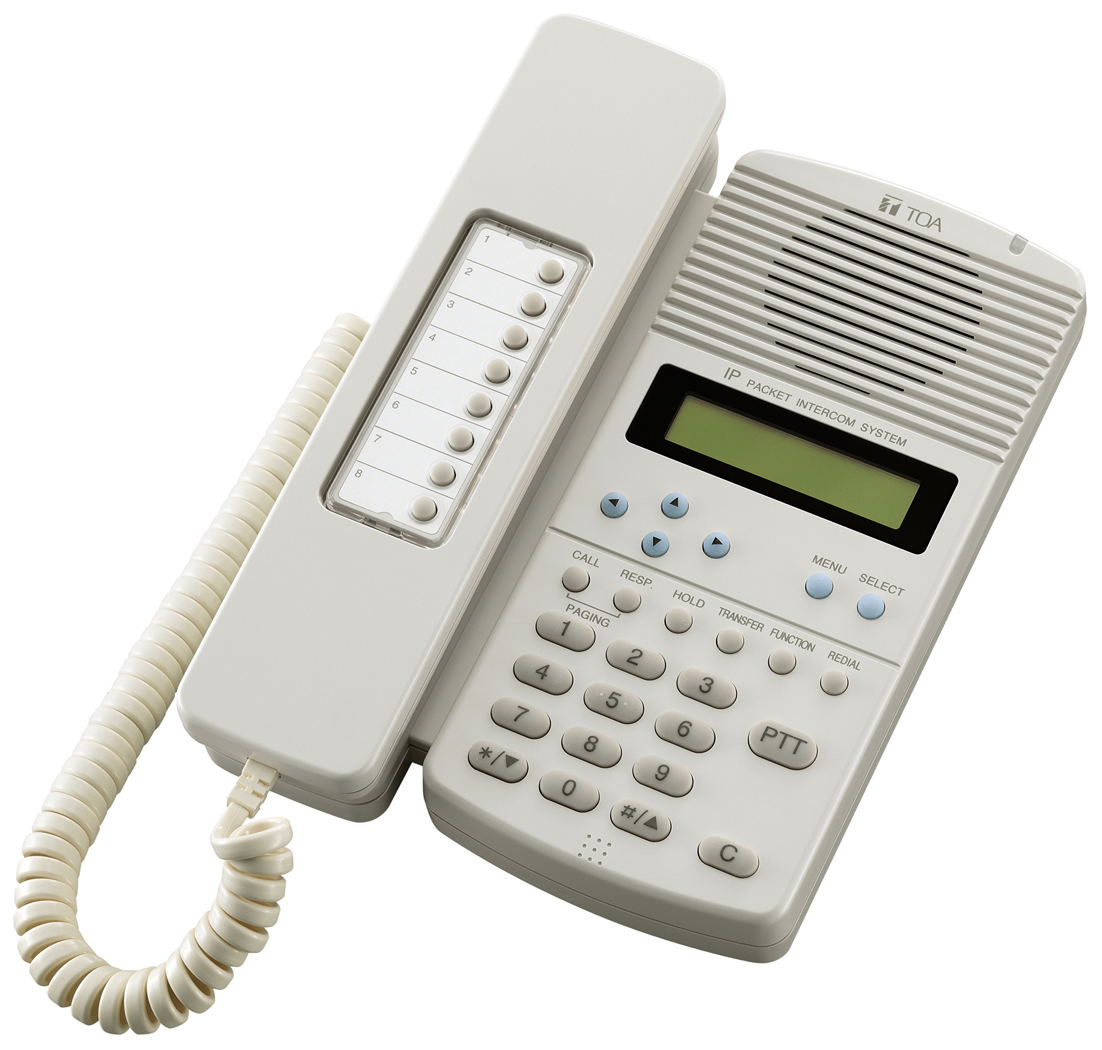

N-8600MS IP Master Station

N-8600MS Y

The N-8600MS is an IP multifunctional master station employing packet audio technology. Connecting the N-8600MS to an IP network (LAN or WAN) permits hands-free or handset conversation of high sound quality to be made between the N-8600MS and intercom stations connected to the IP Intercom Exchange, or between the N-8600MS units. Besides, the N-8600MS can be used in conjunction with the Multi Interface units through a network. The Multifunctional Master Station provides LCD display, Auto-dialer function enabling one-touch dialing, headset terminal and external speaker terminal. Power can be supplied from the PoE (Power over Ethernet) switching hub. (In this case, an AC adapter is not required.) This station can be mounted to the wall using an optional YC-280 wall mounting bracket.



QTY: Add to Request for quote Request for quote
Specification
* 0 dB = 1 V
Power Source Power supply device that complies with IEEE802.3af standard or
12 V DC (supplied from the AC adapter (option))
Power Consumption Use of the AC adapter (12 V DC): 2.5 W (station only)
Use of the PoE (48 V DC): 3 W
Speech Method Hands-free or handset conversation
Audio Frequency Range 300 Hz - 7 kHz
Hands-free Speaker: 5.7 cm (2.24) cone-type
Microphone: Omni-directional electret condenser microphone
Handset Receive path: Dynamic type, Send path: Electret condenser microphone
Headset Terminal Speaker: 150 Ω, φ3.5 mm (0.14) mini jack"
Microphone: -49 dB*, φ3.5 mm (0.14) mini jack"
External Speaker Terminal Maximum output 0.5 W, 8 Ω, screwless connector (2 pins)
Network Section Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation)
Network protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
Audio packet transmission system: Unicast, Multicast
Number of paging destinations: Unicast (max. 16), Multicast (max. 191)
Connector: LAN: RJ45 connector (PoE compatible)
Voice sampling frequency: 16 kHz, 8 kHz (controllable on the software)
Quantifying bit number: 16-bit
Voice encoding method: Sub-band ADPCM, Cryptosystem
Voice packet loss recovery: Silence insertion
Audio delay time: 80 ms, 320 ms (controllable on the software)
Display LCD: Alphanumeric characters (16 characters × 2 lines)
Indication Status lamp
Installation Method Desk/Surface mounted master station
(When mounting to the wall, use the optional YC-280.)
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 122 ゜F)
Operating Humidity 90 %RH or less (no condensation)
Finish Body, Handset: ABS resin, gray
Dimensions 148 (W) × 208 (H) × 70.5 (D) mm (5.83 × 8.19" × 2.78")"
(excluding a curl cord section)
Weight 770 g (1.7 lb)
Accessory CD (for PC setting, maintenance use) …1
Option Wall mounting bracket: YC-280, AC adapter: AD-1210P, AD-1215P
