N-8640SB IP Door Station Board

N-8640SB

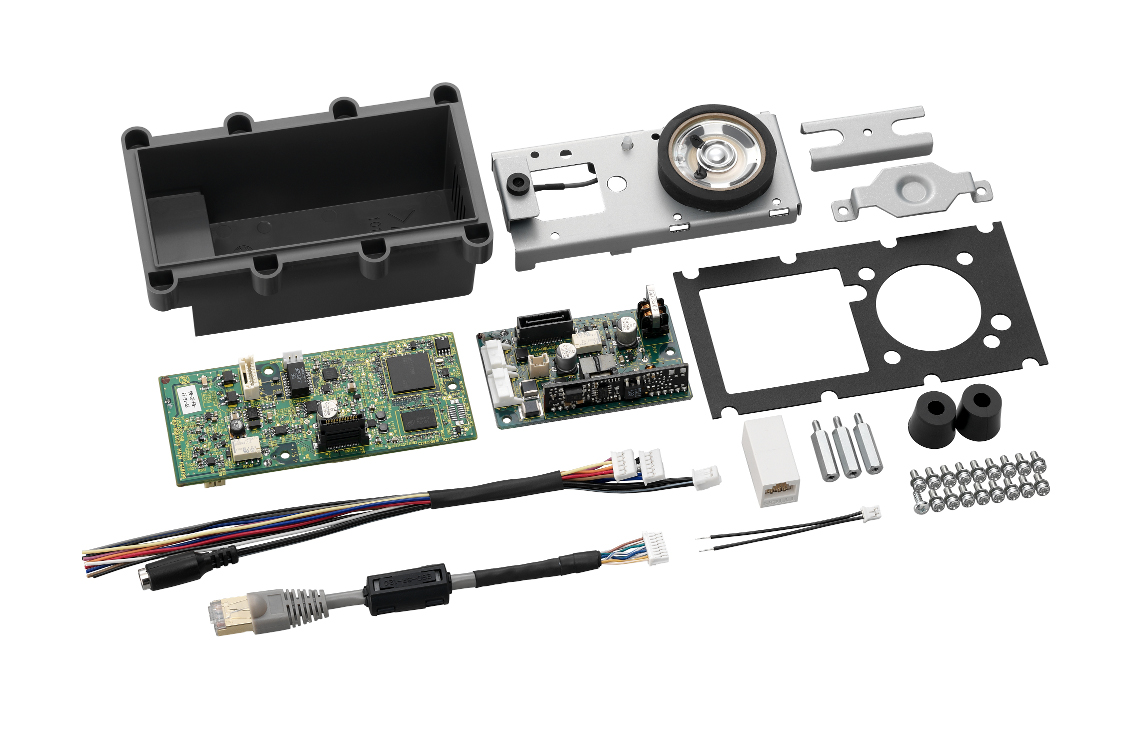

The N-8640SB is a kit of the assembling parts for the custom-made IP door station. This kit consists of the N-8640DS IP Door Station parts excluding the front panel. You can make the IP door station suitable for applications using this kit product in combination with the operation panel section to be prepared separately.



QTY: Add to Request for quote Request for quote
Specification
Power Source Power supply device that complies with IEEE802.3af standard or
12 V DC (supplied from the AC adapter (option))
Power Consumption Use of the AC adapter (12 V DC): 3.5 W (station only), Use of the PoE (48 V DC): 5 W
Speech Method Hands-free conversation
Audio Frequency Range 300 Hz - 7 kHz
Hands-free Speaker: 3.5 cm (1.38") cone-type, maximum output 0.5 W, 8 Ω
Microphone: Omni-directional electret condenser microphone
Control Input 1 channel, no-voltage make contact input, open circuit voltage: 5 V DC,
short circuit current: 10 mA or less, unterminated ends
Control output Open collector output, 4 channels, withstand voltage: 30 V DC,
control current: Max. 50 mA (4 output 1COMMON), unterminated ends
Relay contact output, 1 channel, withstand voltage: 30 V DC,
control current: Max. 500 mA, unterminated ends
External Speaker Terminal Maximum output 0.5 W, 8 Ω, unterminated ends
Network Section Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation)
Network protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
Audio packet transmission system: Unicast, Multicast
Number of paging destinations: 0, *Reception only
Connector: LAN: RJ45 connector (PoE compatible)
Voice sampling frequency: 16 kHz, 8 kHz (controllable on the software)
Quantifying bit number: 16-bit
Voice encoding method: Sub-band ADPCM, Cryptosystem
Voice packet loss recovery: Silence insertion
Audio delay time: 80 ms, 320 ms (controllable on the software)
Operating Temperature -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)
Operating Humidity 90 %RH or less (no condensation)
Dimensions 79 (W) × 134 (H) × 53 (D) mm (3.11" × 5.28" × 2.09")
(Complete assembly of component parts)
Weight 350 g (0.77 lb) (Total weight)
Option AC adapter: AD-1210P, AD-1215P
Note: For the assembly procedure and operation panel design, refer to the instruction manual supplied with the unit.
