N-8000AF CU

N-8000AF AUDIO INTERFACE UNIT

N-8000AF CU

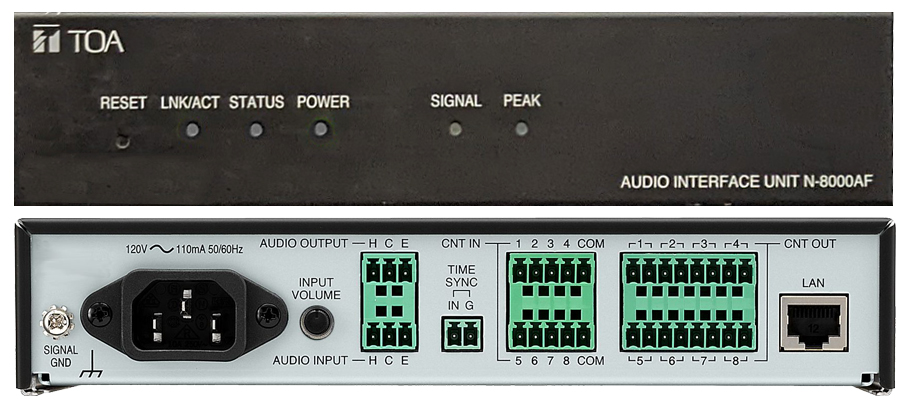

The N-8000AF is an Audio interface unit designed for use with TOA's packet intercom system (IP network-compatible intercom system) that employs the packet audio technology. It has an analog audio input and output, a time synchronization contact input, and each 8 contact inputs and outputs. Connecting the unit to the LAN permits recording of conversations, chime broadcast at regular intervals (time signal) and paging broadcast to be realized. It can be mounted in an EIA equipment rack (1U size) with the use of an optional rack mounting bracket or installed on a wall using an optional wall mounting bracket.



QTY: Add to Request for quote Request for quote
Specification
* 0 dB = 1 V
Power Source 120 V AC, 50/60 Hz
Power Consumption 7 W (max.)
Audio Input 1 input (transformer isolated), -58 dB* to 0 dB*, 2 kΩ, balanced
(MIC/LINE input, controllable on the software)
with input volume control knob, removable terminal block (3 pins)
Audio Output 1 output (transformer isolated), 0 dB*, 600 Ω, balanced, removable terminal block (3 pins)
Contact Input 8 inputs, no-voltage make contact input, open voltage: 24 V DC,
short-circuit current: 5 mA or less, removable terminal block (10 pins),
(1 common terminal for 4 inputs)
Contact Output 8 outputs, relay contact output, contact capacity: 24 V DC/2 - 500 mA,
removable terminal block (16 pins)
Time Sync Input 1 input, no-voltage make contact input, open voltage: 24 V DC,
short-circuit current: 5 mA or less, removable terminal block (2 pins)
Network Section Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation)
Network protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
Audio packet transmission system: Unicast, Multicast
Number of paging destinations: Unicast (max. 8), Multicast (max. 191)
Connector: RJ45 connector
Voice sampling frequency: 16 kHz, 8 kHz (controllable on the software)
Quantifying bit number: 16-bit
Voice encoding method: Sub-band ADPCM, Cryptosystem
Voice packet loss recovery: Silence insertion
Audio delay time: 80 ms, 320 ms (controllable on the software)
Indication Network LNK/ACT indication, Status lamp, Power-on indication lamp, Signal lamp, Peak lamp
Other Firmware update function, System data hold function, Time of day hold facility,
Reset switch (front panel)
Setting Method Rack, Desk, Surface mount
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity 90 %RH or less (no condensation)
Finish Pre-coated steel plate, black, 30 % gloss
Dimensions 210 (W) × 44.3 (H) × 267 (D) mm (8.27" × 1.74" × 10.51")
Weight 1.7 kg (3.75 lb)
Accessory Power cord (2 m (6.56 ft)) …1, CD (for PC setting, maintenance use) …1,
Removable terminal plug (2 pins) …1, Removable terminal plug (3 pins) …2,
Removable terminal plug (5 pins) …2, Removable terminal plug (8 pins) …2,
Plastic foot…4, Screw for fitting plastic foot …4
Option Rack mounting bracket: MB-15B-BK (for rack mounting one N-8000AF unit)
MB-15B-J (for rack mounting two N-8000AF units)
Wall mounting bracket: YC-850
