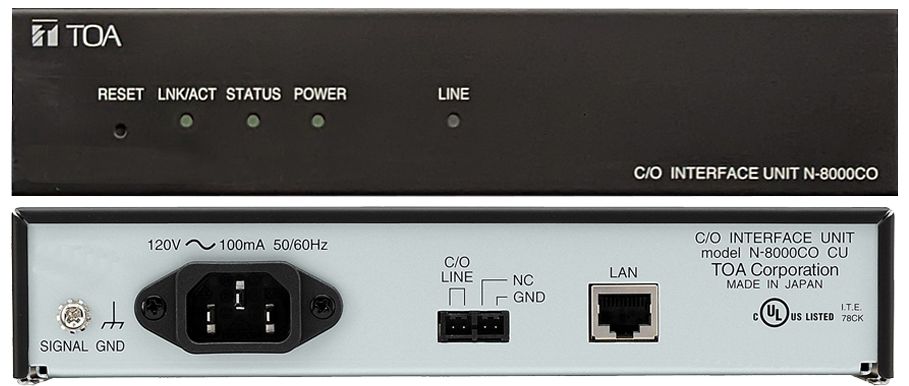

N-8000CO C/O Interface Unit

N-8000CO CU

The N-8000CO is a C/O interface unit designed for use with TOA's packet intercom system (IP network-compatible intercom system) that employs the packet audio technology. It has an analog central office line circuit, allowing the intercom station to make and receive calls to and from the telephone line. Connecting the unit to the LAN permits paging calls through analog subscriber line to be made and the equipment connected to the N-8000MI and N-8000DI to be controlled. It can be mounted in an EIA equipment rack (1U size) with the use of an optional rack mounting bracket or installed on a wall using an optional wall mounting bracket.



Specification
Power Source 120 V AC, 50/60 Hz
Power Consumption 7 W (max.)
C/O Interface Public Switched telephone networks
Number of lines: 1 line
Selective signal type: DTMF signal
Signal system: Compatible with loop start signaling
Wiring method: 1 pair of twisted pair cables
Network Section Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation)
Network protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
Audio packet transmission system: Unicast, Multicast
Number of paging destinations: Unicast (max. 8), Multicast (max. 191)
Connector: RJ45 connector
Voice sampling frequency: 16 kHz, 8 kHz (controllable on the software)
Quantifying bit number: 16-bit
Voice encoding method: Sub-band ADPCM, Cryptosystem
Voice packet loss recovery: Silence insertion
Audio delay time: 80 ms, 320 ms (controllable on the software)
Indication Network LNK/ACT indication, Status lamp, Power-on indication lamp,
Line in-use lamp
Other Firmware update function, System data hold function, Time of day hold facility,
Reset switch (front panel)
Setting Method Rack, Desk, Surface mount
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity 90 %RH or less (no condensation)
Finish Pre-coated steel plate, black, 30 % gloss
Dimensions 210 (W) × 44.3 (H) × 267 (D) mm (8.27" × 1.74" × 10.51")
Weight 1.7 kg (3.75 lb)
Accessory Power cord (2 m (6.56 ft)) …1, CD (for PC setting, maintenance use) …1,
Mini-clamp plug (2 pins) …2, Plastic foot …4, Screw for fitting plastic foot …4
Option Rack mounting bracket: MB-15B-BK (for rack mounting one N-8000CO unit)
MB-15B-J (for rack mounting two N-8000CO units)
Wall mounting bracket: YC-850
