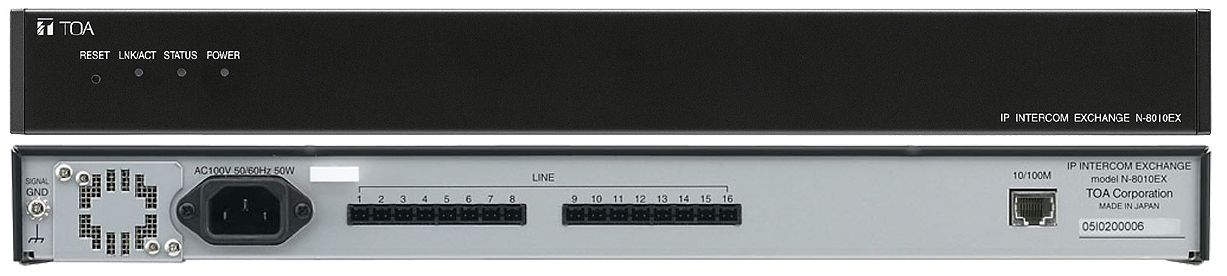

N-8010EX IP Network Intercom Exchange

N-8010EX CU

The IP Intercom Exchange uses packet audio technology to permit connection of up to sixteen N-8000 Series stations. Hands-free conversation is possible between stations. Moreover, the exchange is equipped with a networking interface, allowing up to 192 exchanges to be connected over a network using additional IP intercom exchanges. The Exchange can be mounted in an EIA standard rack (1-unit size) or to a wall using the supplied bracket.



QTY: Add to Request for quote Request for quote
Specification
* 0 dB = 1 V
Power Source 120 V AC, 50/60 Hz
Power Consumption 50 W (at rated), 75 W (max.)
Interface Section for station Number of lines: 16 lines
Number of speech link: Internal: 1/External: 2
Type of Speech Path: Space sharing/Time Space sharing
Transmission system: 2 wire 160 kbps echo canceller transmission system
Signal Level: 0 dB* or less
Transmission range: Max. 1500 m (φ0.65 mm, Loop resistance 170 Ω)
Speech method: Simultaneous conversation by way of echo canceller (Hands-free),
Connector: Dedicated connector
Wiring method: 1 set of twisted pair cable
Feeding voltage/current: 48 V DC, Max. 70 mA
Paging Output Station paging only
Network Section Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation)
Network protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
Audio packet transmission system: Unicast, Multicast
Number of paging destinations: Unicast (max. 16), Multicast (max. 191)
Connector: RJ45 connector
Voice sampling frequency: 16 kHz, 8 kHz (controllable on the software)
Quantifying bit number: 16-bit
Voice encoding method: Sub-band ADPCM, Cryptosystem
Voice packet loss recovery: Silence insertion
Audio delay time: 80 ms, 320 ms (controllable on the software)
Indication Network LNK/ACT indication, Status lamp, Power-on indication lamp
Others Firmware update function, System registration data entry hold facility,
Time of day hold facility, Forced air cooling, Reset switch (front panel)
Setting Method Rack, Desk, Surface mount
Operating Temperature 0 ℃ to +40 ℃
Operating Humidity 90 %RH or less (no condensation)
Finish Pre-coated steel plate, black, 30 % gloss
Dimensions 420 (W) x 44.3 (H) x 356 (D) mm
Weight 4.2 kg
Accessory AC power cord (2 m) …1, CD (for PC setting, maintenance use) …1,
Mini-clamp plug (2 pins) …20, Plastic foot …4, Screw for fitting plastic foot …4,
Rack mounting bracket …2, Screw for rack mounting …4,
Wall mounting bracket …2, Screw for mounting bracket …8,
Screw for wall mounting …4
