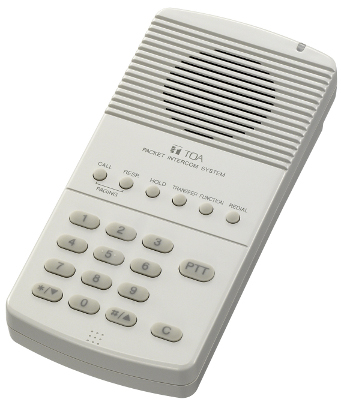

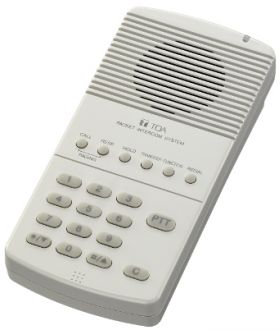

N-8011MS Standard Hands-Free Master Station

N-8011MS Y

This Master Station is designed to connect to the IP Intercom Exchange, and provides hands-free conversation of high sound quality. With its space-saving design, this Master Station features the same functions as the Standard Master Station. This station can be mounted to the wall using an optional YC-290 wall mounting bracket.



QTY: Add to Request for quote Request for quote
Specification
* 0 dB = 1 V
Power Source 48 V DC (supplied from the IP intercom exchange (option))
Power Consumption 1.8 W (at rated), 2.4 W (max.)
Wiring Method 1 set of twisted pair cable
Transmission System 2 wire 160 kbps echo canceller transmission system
Signal Level Under 0 dB*
Speech Method Hands-free conversation
Audio Frequency Range 300 Hz - 7 kHz
Transmission Range Max. 1500 m (φ0.65 mm, Loop resistance 170 Ω)
Hands-free Speaker: 5.7 cm cone-type, 0.6 W, 8 Ω
Microphone: Omni-directional electret condenser microphone
Indication Status lamp
Line Connecting Terminal RJ11 modular jack
Installation Method Desk/Surface mounted master station
(When mounting to the wall, use the optional YC-290.)
Operating Temperature 0 ℃ to +40 ℃
Operating Humidity Under 90 % RH (no condensation)
Finish Body: ABS resin, gray
Dimensions 92 (W) x 195 (H) x 56.1 (D) mm
Weight 400 g
Accessory Connection cord (3 m) …1
Option Wall mounting bracket: YC-290
