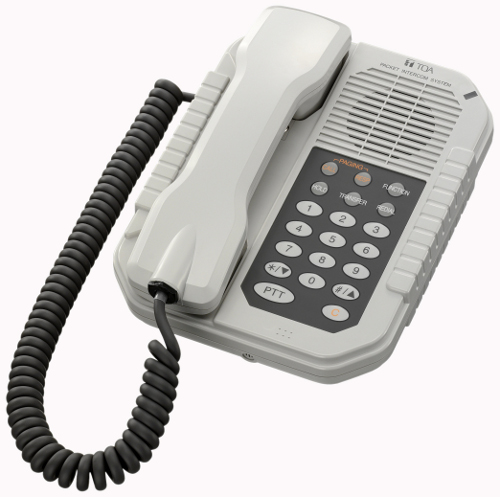

N-8020MS Industrial-Use Master Station

N-8020MS Y

This Master Station is designed to connect to the IP Intercom Exchange, and provides hands-free or handset conversation of high sound quality. It features dustproof and waterproof construction, and can be used in locations exposed to ambient temperatures ranging from -10 ℃ to +50 ℃. In addition to the functions of the standard Master Station, the Industrial-Use Station permits connection of external speakers, and can take out control signal for dial-in indicator from its contact output. This station can be mounted to the wall using an optional YC-280 wall mounting bracket.



QTY: Add to Request for quote Request for quote
Specification
* 0 dB = 1 V
Power Source 48 V DC (supplied from the IP intercom exchange (option))
Power Consumption 1.8 W (at rated), 2.4 W (max.)
Wiring Method 1 set of twisted pair cable
Transmission System 2 wire 160 kbps echo canceller transmission system
Signal Level Under 0 dB*
Speech Method Hands-free or handset conversation
Audio Frequency Range 300 Hz - 7 kHz
Transmission Range Max. 1500 m (φ0.65 mm, Loop resistance 170 Ω)
Hands-free Speaker: 5.7 cm cone-type, 0.6 W, 8 Ω
Microphone: Omni-directional electret condenser microphone
Handset Receive path: Dynamic type, Send path: Electret condenser microphone
Dial-in Contact Output Open collector output (polarized), withstand voltage: Max. 30 V DC,
control current: Max. 50 mA, screwless connector (2 pins)
Indication Status lamp
Line Connecting Terminal RJ11 modular jack
External Speaker Terminal 0.6 W, 8 Ω, screwless connector (2 pins)
Installation Method Desk/Surface mounted master station
(When mounting to the wall, use the optional YC-280.)
Operating Temperature -10 ℃ to +50 ℃
Operating Humidity Under 90 % RH (no condensation)
Dust/Water Protection IP54
Finish Body, Handset: ABS resin, gray
Dimensions 170 (W) x 220 (H) x 97.8 (D) mm (excluding a curl cord and projection sections)
Weight 1 kg
Accessory Rubber cap …2
Option Wall mounting bracket: YC-280
