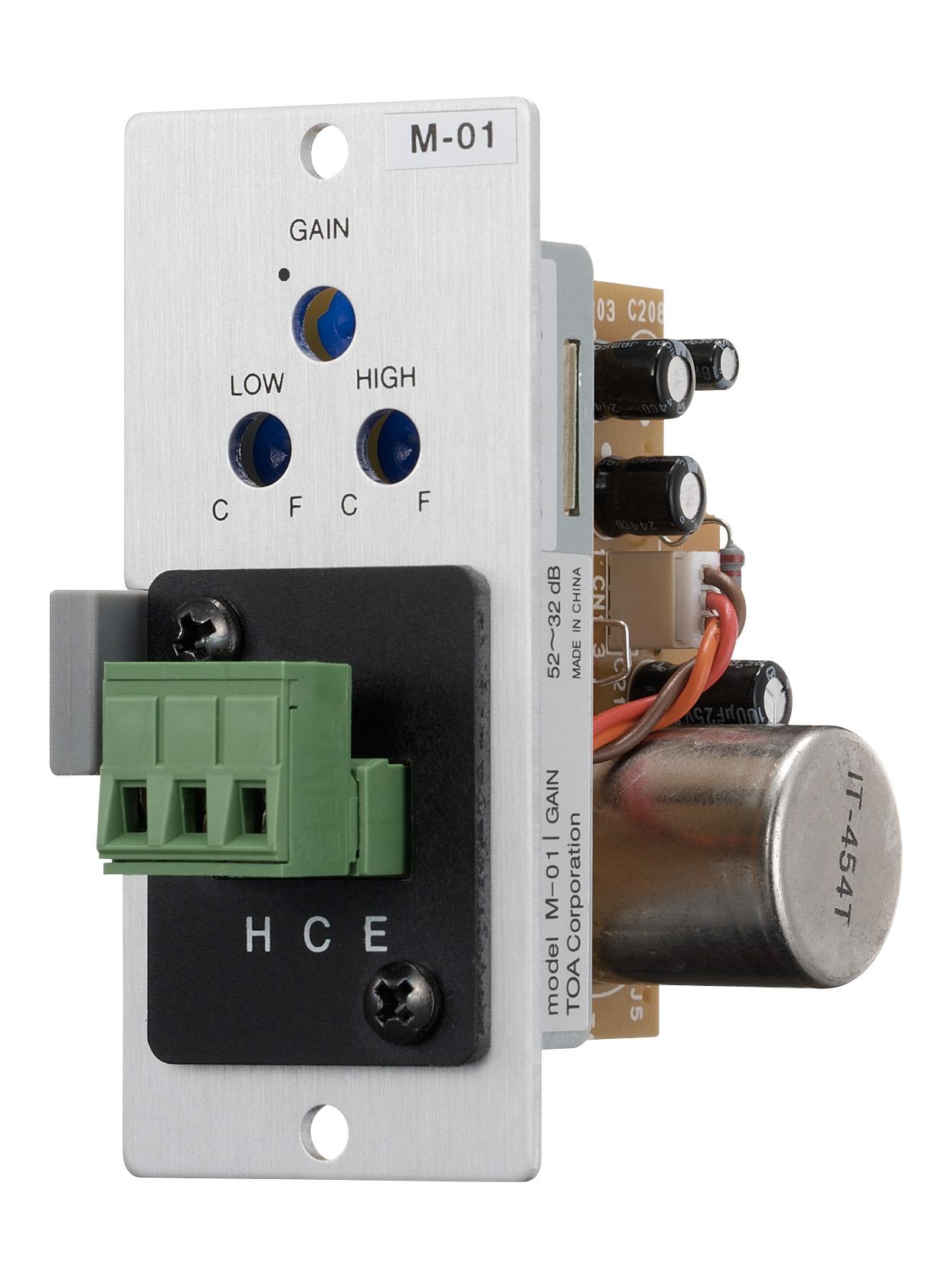

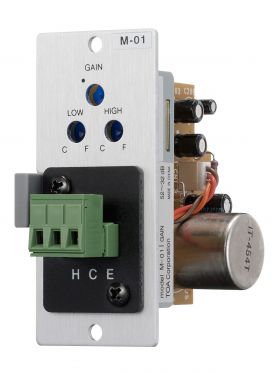

M-01S Microphone Input

M-01S

- For Balanced, Low Impedance Microphones. - High and Low Cut Fileters for tone control, 4.2k Hz and 330 Hz, 6 dB/octave. - Phantom Power, +22V DC for condenser-type microphones. Avtive by default, cut Jumper J1 to disable. - Connector: removable terminal block.



QTY: Add to Request for quote Request for quote
Specification
Faceplate Controls Gain, high and low cut filters
PCB Controls Phantom power defeat
Input Impedance 600 ohms, balanced transformer-isolated
Sensitivity '-70 to -50 dBu
Gain 32 to 52 dB
Noise (EIN) -126 dBu, 200 ohms terminated
