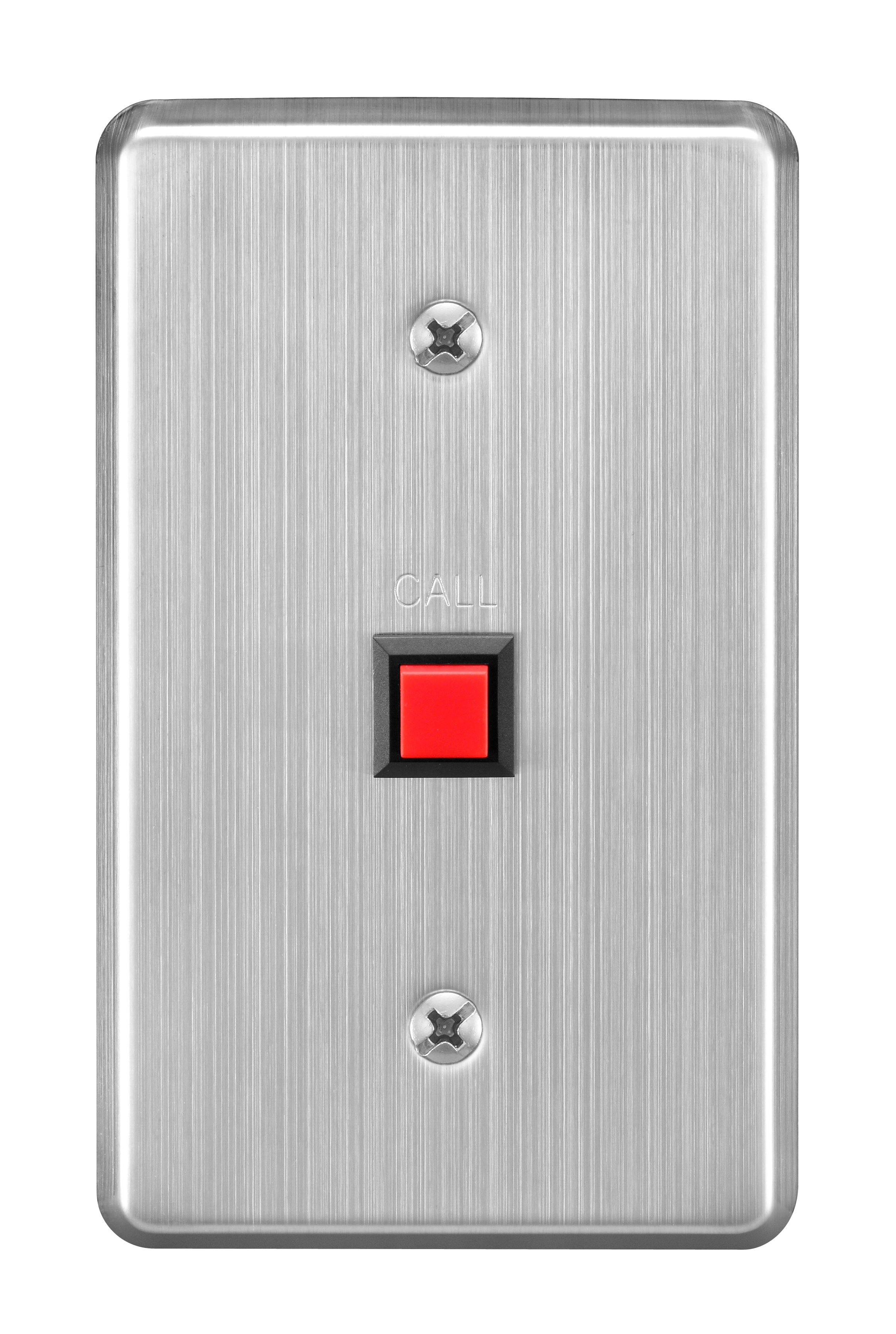

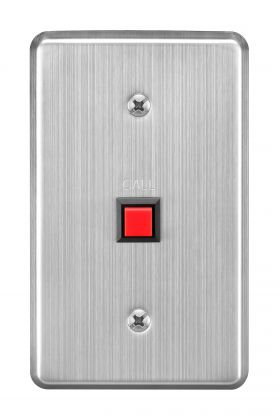

RS-143 IP Intercom Switch Panel

RS-143

The RS-143 is a switch panel designed for use with the N-8000RS or N-8010RS 2-Core Shielded Substation Interface Unit. It is equipped with a Call switch and can be installed in a 1-gang electrical box. By connecting a high impedance speaker to it, hands-free conversation with the master station can be made through its speaker. Also, it can be used in connection with the RS-141 Ip Intercom Option Handset.



QTY: Add to Request for quote Request for quote
Specification
Call-in Switch Momentary
Wiring Two-core shielded cable
Transmission Range 0.5 km (546 yd)/φ0.5 mm (AWG24)
0.8 km (874 yd)/φ0.65 mm (AWG22)
1.3 km (1421 yd)/φ0.9 mm (AWG19)
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Finish Plate: Stainless steel, hairline
Call-in Switch: resin, red
Dimensions 70 (W) × 115 (H) × 28.6 (D) mm (2.76 × 4.53" × 1.13")"
Weight 80 g (0.18 lb)
Accessory Mounting bracket ……1, bracket mounting screw (No.6-32UNC × 18) ……2,
Box mounting screw (M4 × 30) ……2,
Box mounting screw (No.6-32UNC × 30) ……2
