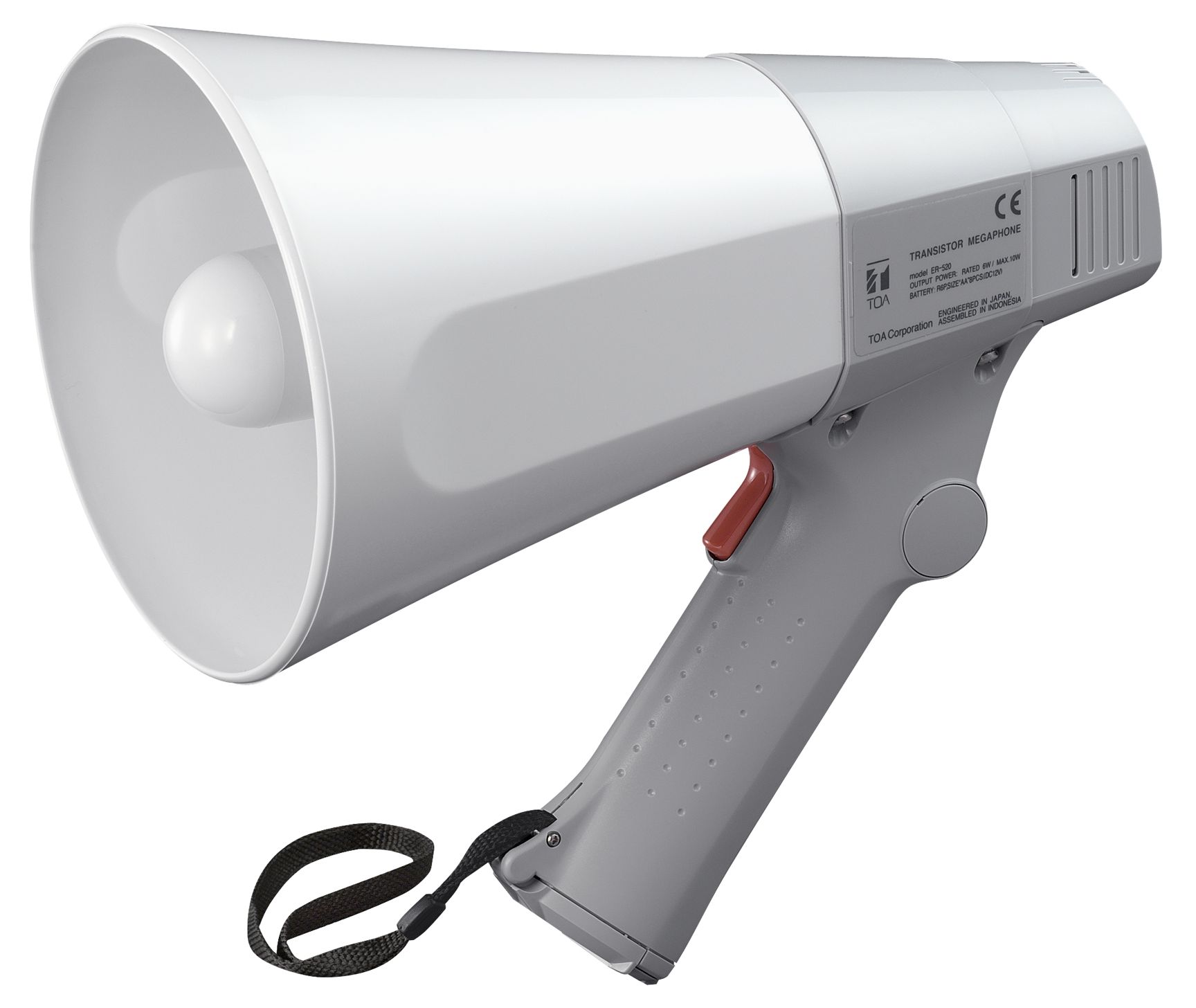

ER-520(10W max.) Hand Grip Type Megaphone

ER-520

Small in size and light in weight, the ER-520 megaphone can be easily carried by a single hand. Handle and microphone with anti-bacteria treatment improve hygiene and safety during use. The newly developed polyimide diaphragm is employed to ensure high sound quality.



QTY: Add to Request for quote Request for quote
Specification
Power Source R6P (AA) × 8 (12 V DC)
Rated Output 6 W
Maximum Output 10 W
Battery Life Approx. 10 hours (JEITA)*
Audible Range (City areas) Approx. 250 m (JEITA)*
Diaphragm Polyimide film
Anti-bacteria Treatment Mouth and handle
Operating Temperature -10℃ to +40℃
Finish Horn: ABS resin, light gray
Strap: Tetoron, black
Handle, mouth and others: ABS resin, gray
Weight 620 g (without batteries)
Dimensions 160 (W) × 256 (H) × 260 (D) mm
Note: Batteries are optional.
* JEITA: Japan electronics and information technology industries association. (EIAJ TT-4501A)
