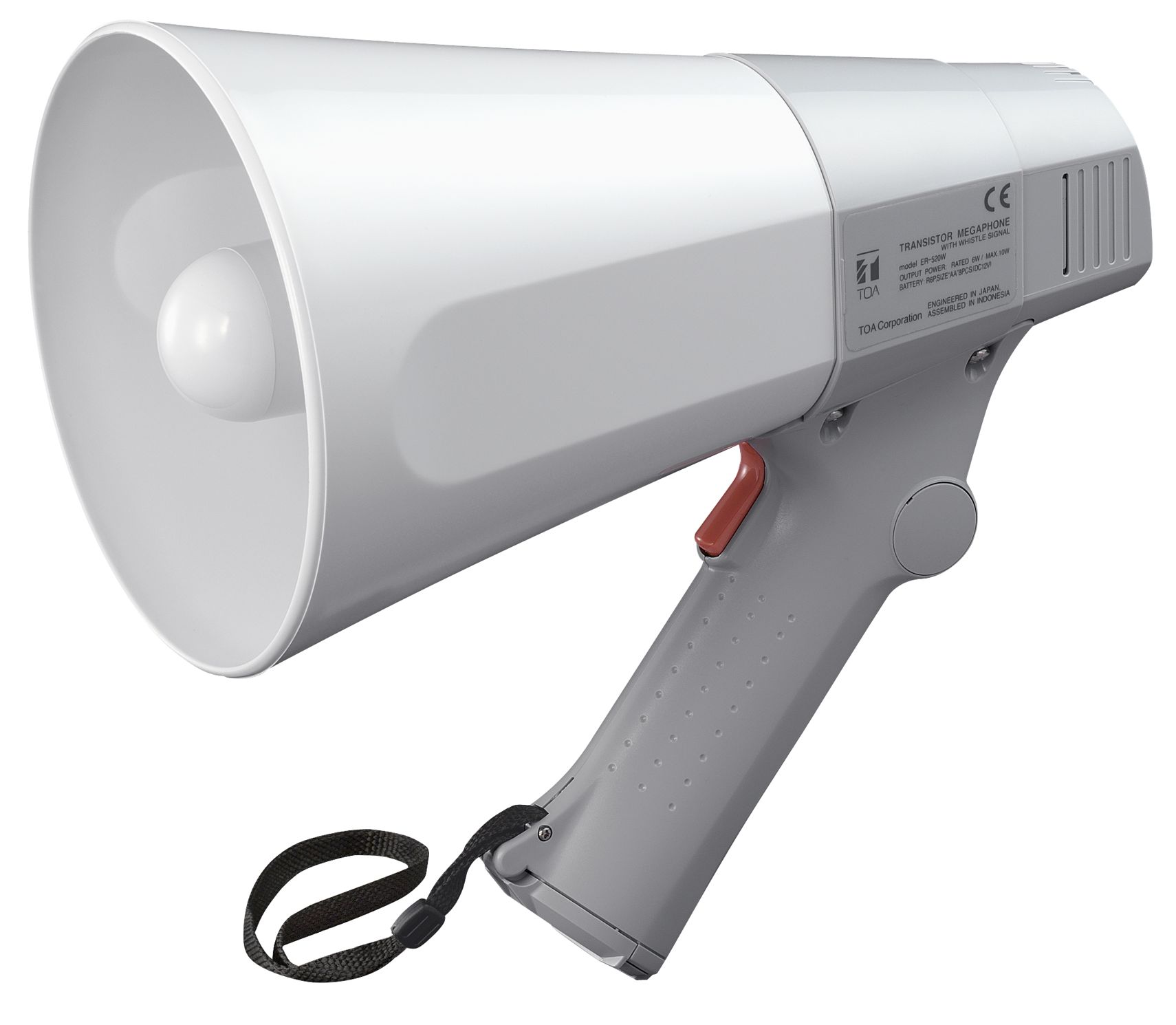

ER-520W(10W max.) Hand Grip Type Megaphone with Whistle

ER-520W

Small in size and light in weight, the ER-520W megaphone can be easily carried by a single hand. It can also provide a whistle tone. Handle and microphone with anti-bacteria treatment improve hygiene and safety during use. The newly developed polyimide diaphragm is employed to ensure high sound quality.



QTY: Add to Request for quote Request for quote
Specification
Power Source R6P (AA) × 8 (12 V DC)
Rated Output 6 W
Maximum Output 10 W
Signal Sound Whistle
Battery Life Voice: Approx. 10 hours (JEITA)*
Whistle: Approx. 30 minutes (JEITA)*
Audible Range (City areas) Voice: Approx. 250 m (JEITA)*
Whistle: Approx. 315 m (JEITA)*
Diaphragm Polyimide film
Anti-bacteria Treatment Mouth and handle
Operating Temperature -10℃ to +40℃
Finish Horn: ABS resin, light gray
Strap: Tetoron, black
Handle, mouth and others: ABS resin, gray
Weight 650 g (without batteries)
Dimensions 160 (W) × 256 (H) × 260 (D) mm
Note: Batteries are optional.
* JEITA: Japan electronics and information technology industries association. (EIAJ TT-4501A)
