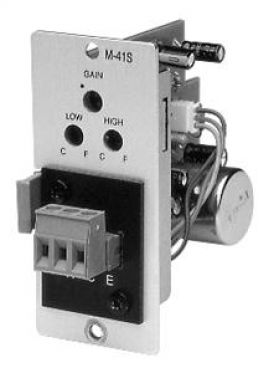

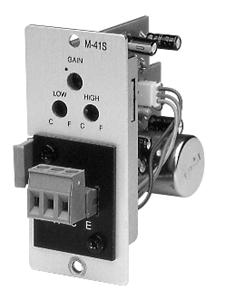

M-41S Microphone Input with Mute-Send

M-41S

The M-41S is a microphone module to be used in conjunction with the 900 series or AX-1000 amplifier.The M-41S has a phantom power supply and a 600 Ω balanced input. The module also has a voice-activated muting control output.



QTY: Add to Request for quote Request for quote
Specification
Power Source 24 V DC
Current Consumption Under 15 mA
Input Sensitivity (Rated Output 100 mV ) 0.2 - 5.0 mV (adjustable)
Low Cut Filter (100 Hz ) -5 to -15 dB
High Cut Filter (10 kHz ) -7 to -13 dB
Noise Output (20 - 20,000 Hz BPF) Under 50 μV
Distortion Under 0.2%
Frequency Response 25 - 20,000 Hz
Phantom Power Over 20 V
Signal-Activated Muting 0.3 - 0.8 mV
Input Connector 3P terminal block
Output Connector 6P card edge-connector
Dimensions 35 (W) × 78 (H) × 88 (D) mm
Weight 80 g
