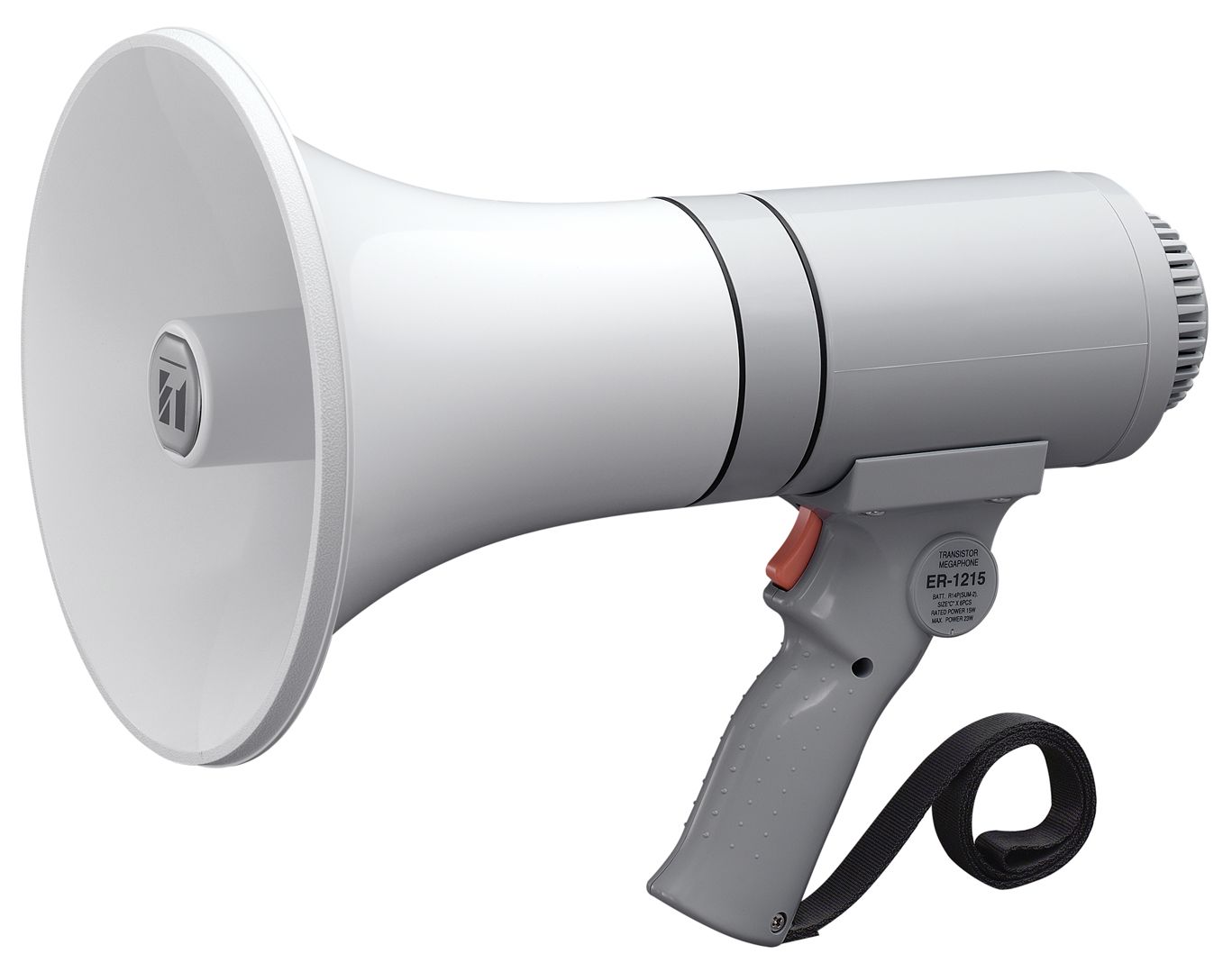

ER-1215(23W max.) Hand Grip Type Megaphone

ER-1215

The ER-1215 is an easy-to-operate, hand grip type megaphone rated at 15 W of output. Handle and microphone with anti-bacteria treatment improve hygiene and safety during use. The newly developed polyimide diaphragm is employed to ensure high sound quality.



QTY: Add to Request for quote Request for quote
Specification
Power Source R14P (C) × 6 (9 V DC)
Rated Output 15 W
Maximum Output 23 W
Battery Life Approx. 14 hours (JEITA)*
Audible Range Approx. 315 m (JEITA)*
Diaphragm Polyimide film (voice coil, bobbin)
Anti-bacteria Treatment Mouth and handle
Operating Temperature -10℃ to +40℃
Finish Horn: ABS resin, light gray
Mouth, battery case and handle: ABS resin, gray
Strap: Nylon, black
Dimensions 210 (W) × 291 (H) × 346 (D) mm
Weight 1.1 kg (without batteries)
Note: Batteries are optional.
* JEITA: Japan electronics and information technology industries association. (EIAJ TT-4501A)
