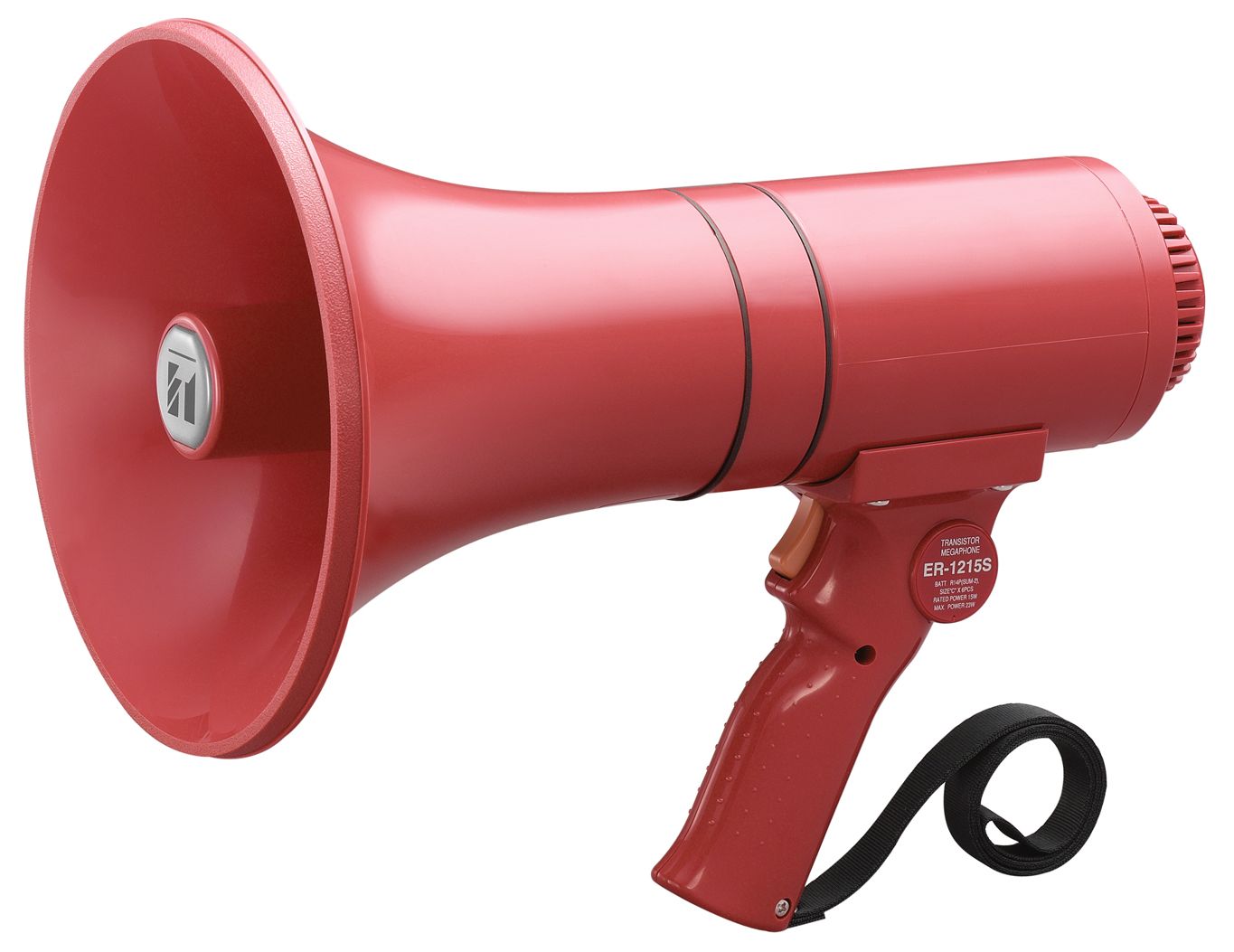

ER-1215S(23W max.) Hand Grip Type Megaphone with Siren

ER-1215S

The ER-1215S is a hand grip type, 15 W output megaphone with a siren. Pressing the siren button sounds a siren continuously in emergency conditions. Handle and microphone with anti-bacteria treatment improve hygiene and safety during use. The newly developed polyimide diaphragm is employed to ensure high sound quality.



QTY: Add to Request for quote Request for quote
Specification
Power Source R14P (C) × 6 (9 V DC)
Rated Output 15 W
Maximum Output 23 W
Signal Sound Siren (sounds at 5 seconds intervals)
Battery Life Voice: Approx. 14 hours (JEITA)*
Siren: Approx. 20 minutes (JEITA)*
Audible Range Voice: Approx. 315 m (JEITA)*
Siren: Approx. 500 m (JEITA)*
Diaphragm Polyimide film (voice coil, bobbin)
Anti-bacteria Treatment Mouth and handle
Operating Temperature -10℃ to +40℃
Finish Horn, mouth, battery case and handle: ABS resin, red
Strap: Nylon, black
Dimensions 210 (W) × 291 (H) × 346 (D) mm
Weight 1.2 kg (without batteries)
Note: Batteries are optional.
* JEITA: Japan electronics and information technology industries association. (EIAJ TT-4501A)
