ER-2215W

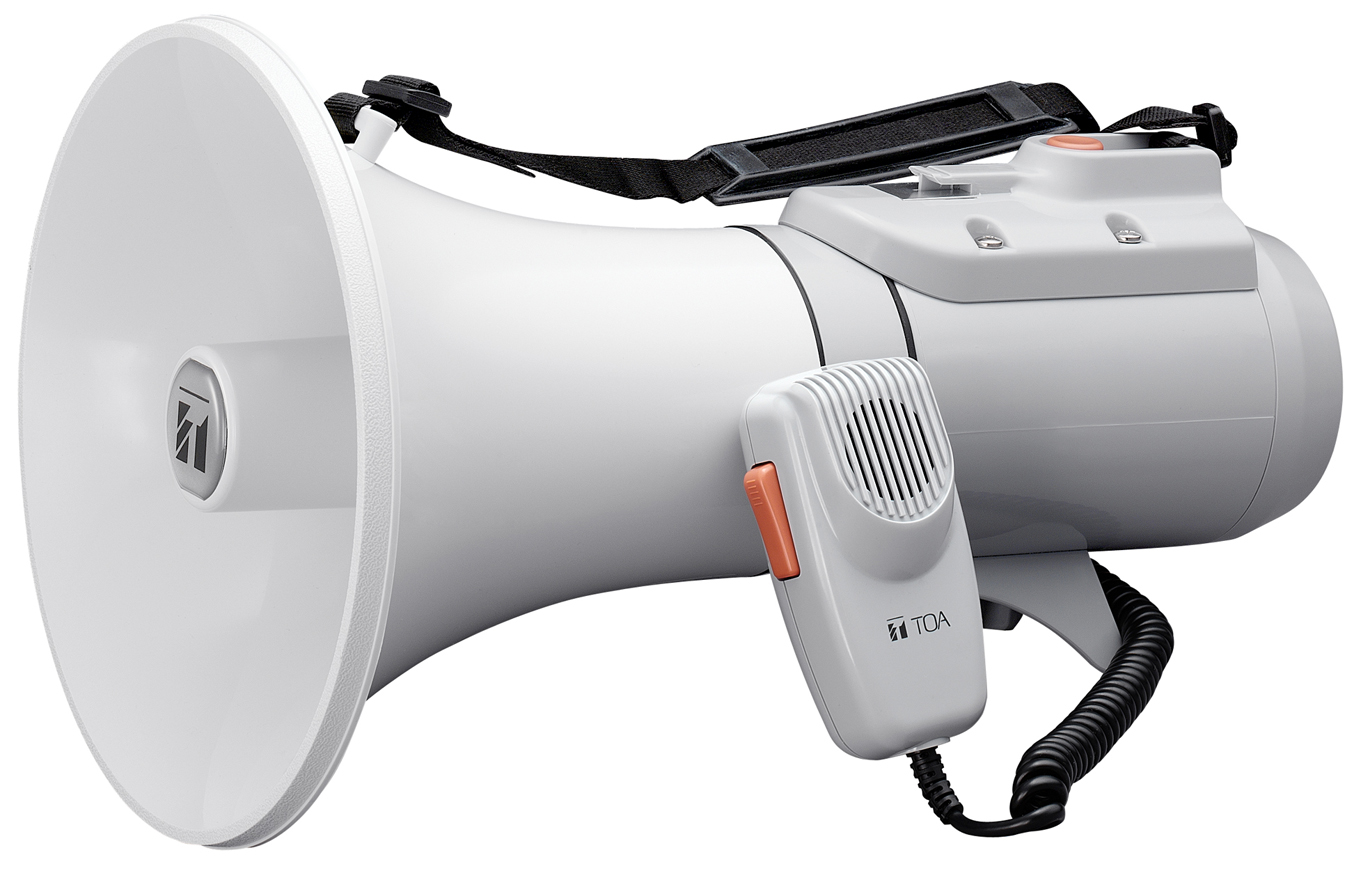

ER-2215 Shoulder Type Megaphone

ER-2215

The ER-2215 is a shoulder megaphone rated at 15 W of output. The ER-2215 comes with a whistle and has a separate microphone. Microphone with anti-bacteria treatment improve hygiene and safety during use. The newly developed polyimide diaphragm is employed to ensure high sound quality.






QTY: Add to Request for quote Request for quote
Specification
Power Source R14P (C) × 6 (9 V DC)
Rated Output 15 W
Maximum Output 23 W
Battery Life Voice: Approx. 9 hours (JEITA)*
Audible Range Voice: Approx. 400 m (JEITA)*
Diaphragm Polyimide film (voice coil, bobbin)
Anti-bacteria Treatment Microphone
Operating Temperature -10 ℃ to +40 ℃
Finish Horn: ABS resin, light gray
Microphone and other: ABS resin, gray
Strap: Nylon, black
Dimensions φ210 × 336 mm
Weight Body: 1.1 kg (without microphone and batteries)
Microphone: 150 g
Note: Batteries are optional.
* JEITA: Japan electronics and information technology industries association. (EIAJ TT-4501A)
