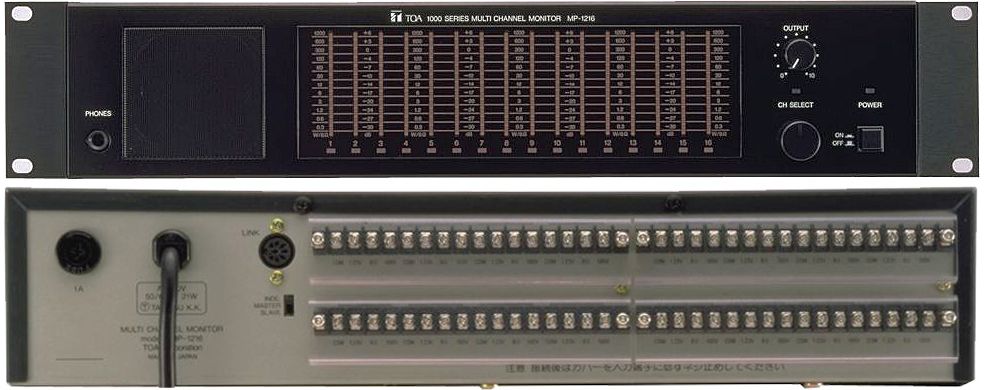

MP-1216 Multi-Channel Monitor

MP-1216

The signal level meter allows simultaneous monitor of 16 channels per unit. Any of the high-impedance speaker line output, low-impedance speaker line output, and line level output can be monitored by connecting it to the corresponding input. One of the 16 channels can be monitored with an internal speaker or headphone. By connecting two MP-1216 units, a maximum of 32 channels can be monitored.

QTY: Add to Request for quote Request for quote
Specification
Power Requirement AC mains, 50/60 Hz
Power Consumption 21 W (120 V version)
25 W (220 - 240 V version)
Max. Display Level Speaker
High impedance: 100 V
Low impedance: 1200 W / 8 Ω
Line: +10 dB (2.45 V)
Level Meter 12-point display, -30 dB 〜 +6 dB (0.3 W 〜 1200 W / 8 Ω)
Speaker Output Max. 3 W
Headphone Output 8 Ω
Finish Front panel: Alumite, black
Dimensions 482.6 (W) × 88.4 (H) × 312.7 (D) mm (19" × 3.48" × 12.31")
Weight 5.3 kg (11.68 lb)
Accessory AC fuse, 250 V 1 A (120 V version)…1,
AC fuse, 250 V T250 mA (220 - 240 V version)…1,
Rack mounting screw…4
