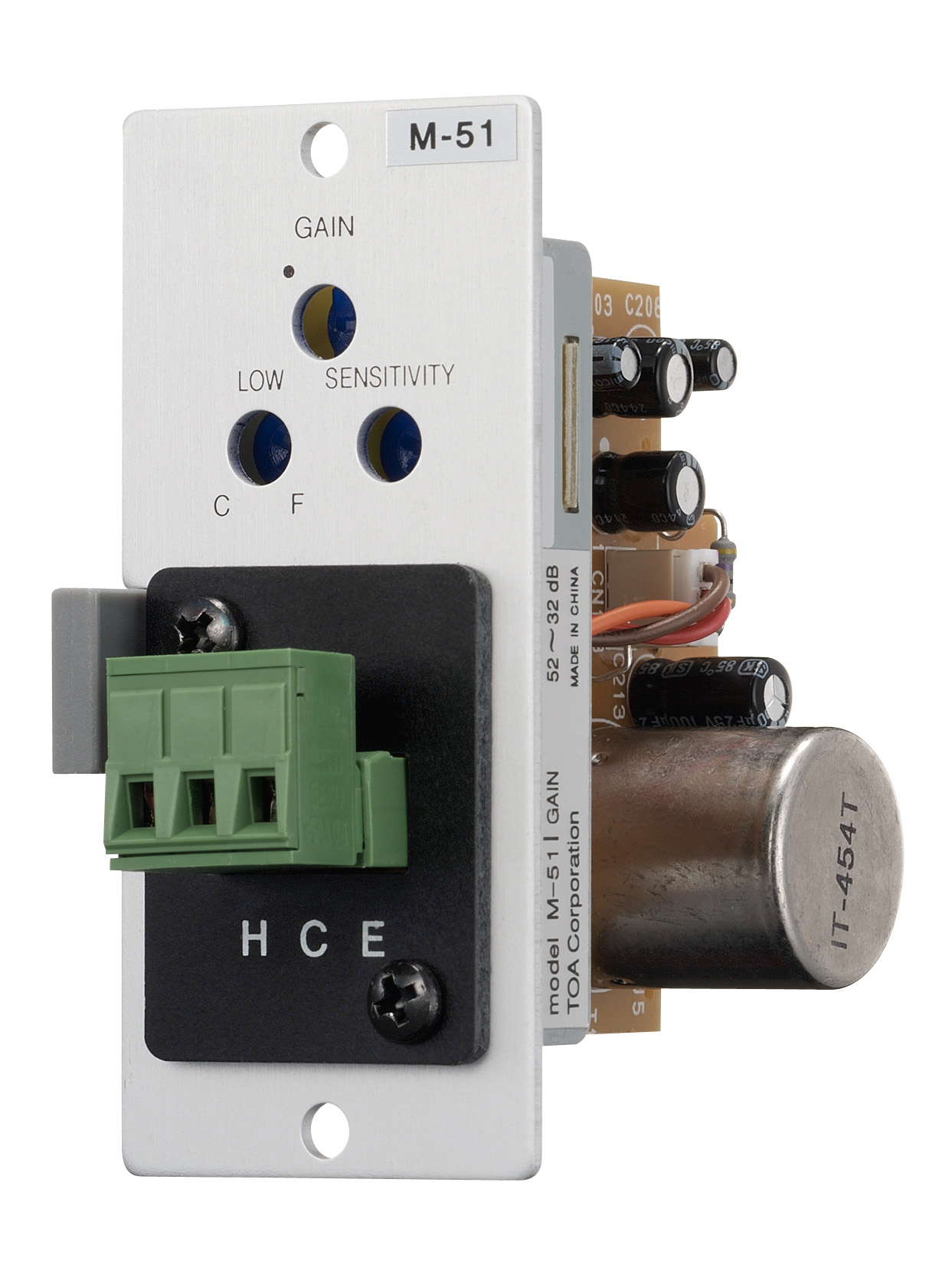

M-51S Microphone Input with Voice Gate

M-51S

- For Balanced, Low Impedance Microphones. - High Cut Fileters for tone control, 330 Hz, 6 dB/octave. - Phantom Power, +22V DC for condenser-type microphones. Activate by default, cut Jumper J1 to disable. - Voice Gate Function, module OFF until input signal exceeds threshold. - Sensitivity Control - turn clockwise to increase sensitivity (to open gate with lower input signal) and counter-clockwise to reduce sensitivity (to open gate with higher input signal) - Connector: removable terminal block.



QTY: Add to Request for quote Request for quote
Specification
Faceplate Controls Gain, low cut filter, voice gate sensitivity
PCB Controls Phantom power defeat
Input Impedance 600 ohms, balanced transformer-isolated
Sensitivity -70 to -50 dBu
Gain 32 to 52 dB
Gain Sensitivity -58 dBu to always open
Noise (EIN) -126 dBu, 200 ohms terminated
