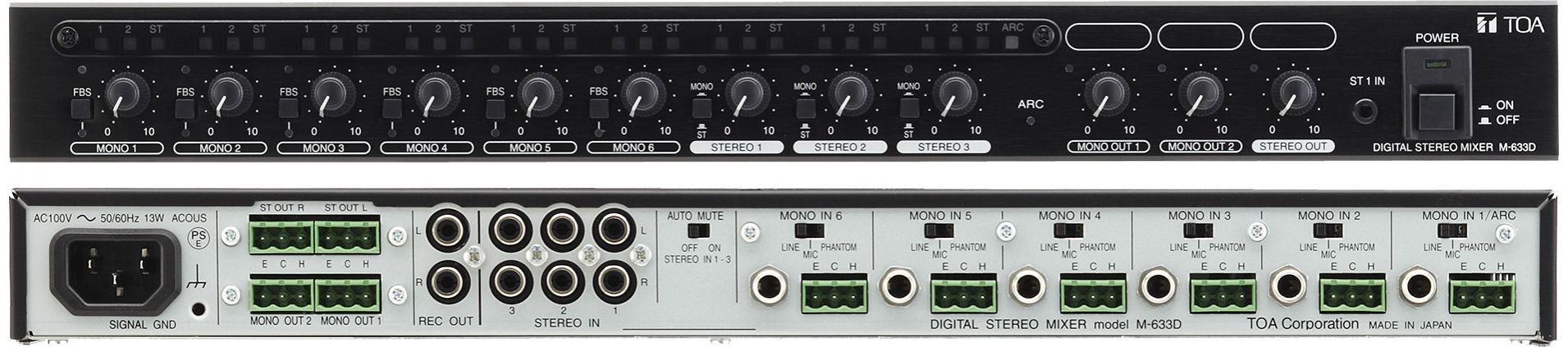

M-633D Digital Stereo Mixer

M-633D CU

The M-633D is a stereo mixer equipped with 12 input channels (6 monaural inputs and 3 stereo inputs) and 6 output channels (2 monaural outputs, 1 stereo output, and 1 stereo recording output). It has 2 monaural channel and 1 stereo channel bus lines, allowing each input signal to be assigned to each bus line individually. It features digital signal processing functions such as Automatic Resonance Control function (ARC), Feedback Suppressor function (FBS), Automatic Clipguard function (ACG), and Automatic Mute function (AUTO MUTE). It performs advanced acoustic compensation by means of automatic processing without the use of an acoustic measuring instrument. It can be mounted in an EIA component rack (1U size).



Application Brochures: Conference Room; House of Worship; Gymnasium

M-633D Digital Mixer Feedback Suppressor and Acoustic Resonance Control (ARC) Demo

QTY: Add to Request for quote Request for quote
Specification
(*4) 0 dB = 1 V
Power Source 120 V AC, 60 Hz
Power Consumption 13 W
Frequency Response 20 Hz - 20 kHz
Sampling Frequency 48 kHz
Dynamic Range 90 dB or more (IHF-A weighted)
Distortion 0.03 % or less, 1 kHz, -10 dB(*4) input, 0 dB(*4) output
(20 Hz - 20 kHz BPF)
Input 6 monaural input channels (MONO IN 1 - 6),
selectable independently from 3 types of inputs below for each channel
LINE
: -10 dB(*4), 2.4 KΩ
MIC
: -46 dB(*4), 2.4 KΩ
PHANTOM
: -46 dB(*4), 2.4 KΩ
supplies phantom power of +24 V DC, 10 mA
electronically balanced
Removable terminal block (3 pins), phone jack
3 stereo inputs (L, R) (STEREO IN 1 - 3)
-10 dB(*4)/ 10 kΩ,
RCA jack (STEREO IN 1 - 3), Stereo mini jack (ST IN 1)
Output 2 monaural output channels (MONO OUT 1, 2)
0 dB(*4) (applicable load: 1 kΩ or more), electronically balanced,
removable terminal block (3 pins)
1 stereo output (L, R) channel (ST OUT L, R)
0 dB(*4) (applicable load: 1 kΩ or more), electronically balanced,
removable terminal block (3 pins)
1 stereo recording output (L, R) channel (REC OUT L, R)
-10 dB(*4) (applicable load: 1 kΩ or more), RCA jack
Bus Line Monaural channel × 2, Stereo channel × 1
AD Converter 24 bits
DA Converter 24 bits
Signal Processing
Automatic Resonance Control Function 3 output channels (each monaural output channel, stereo output L, R),
independent settings for each channel, automatic creation of EQ curves
(for sound field compensation)
ARC measurement start switch × 1, Function ON/OFF check indicator × 1
Feedback Suppression Function 6 channels (each monaural input channel),
independent settings for each channel
Function ON/OFF switch × 6, Function ON/OFF check indicator × 6
Automatic Clipguard Function 6 channels (each monaural input channel),
independent settings for each channel
Automatic Mute Function Function ON/OFF switch × 1
Input Level Indicator 2-color LED indicator: Green (for appropriate level)/red (for peak level)
Output Level Indicator 2-color LED indicator: Green (for appropriate level)/red (for peak level)
Finish Panel: Aluminum, black, hairline
Case: Precoated steel sheet, black, 30 % gloss
Dimensions 420 (W) × 44 (H) × 341.3 (D) mm (16.54" × 1.73" × 13.44")
Weight 4 kg (8.82 lb)
Accessories Power cord (2 m (6.56 ft)) ……1, Removable terminal plug (3 pins) ……10,
Rubber foot ……4, Rack mounting bracket ……2, Machine screw (M3 × 8) ……6
