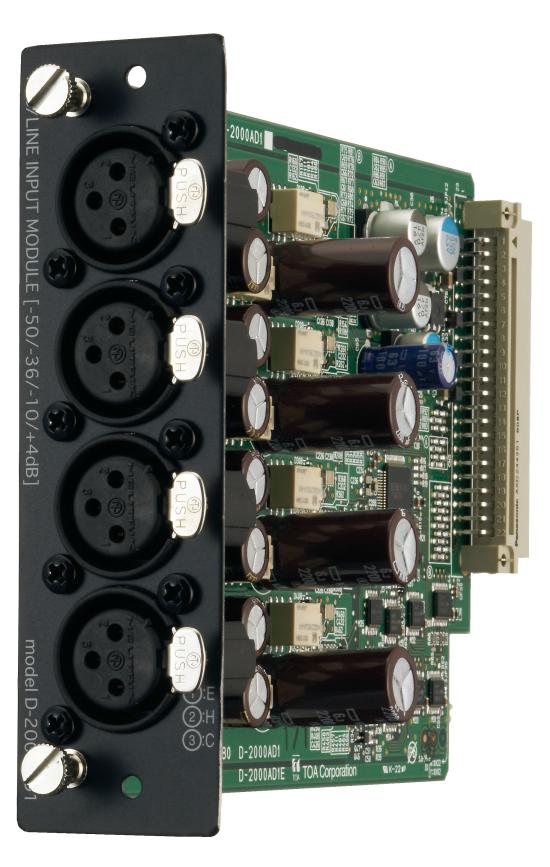

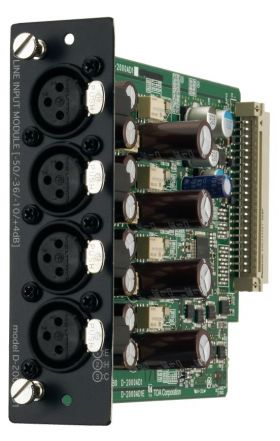

D-2000AD1 Mic/Line Input Module

D-2000AD1

The D-2000AD1 is a 4-channel Microphone/Line Input Module designed for use with the D-2008SP Digital Mixing Processor Unit. It employs XLR type connectors.



QTY: Add to Request for quote Request for quote
Specification
*0 dB = 0.775 V
Input 4 channels, Mic/Line selectable
Mic: -50/-36 dB*, 2.6 kΩ, electronically-balanced
Line: -10 dB*, 2.6 kΩ/+4 dB*, 7 kΩ, electronically-balanced
Connector: XLR-3-31 equivalent
Phantom power supply (48 V DC, can be used when set for the Mic)
Ground lift switch
A/D Converter 24 bit
Sampling Frequency 48 kHz
Frequency Response 20 Hz - 20 kHz, ±1 dB (+4 dB* input)
Dynamic Range 104 dB (IHF-A weighted) or more (+4 dB* input)
Total Harmonic Distortion 0.008 % or less (+4 dB* input)
Finish Panel: Pre-coated steel plate, black, 30 % gloss
Dimensions 35 (W) × 119.5 (H) × 178.4 (D) mm (1.38" × 4.7" × 7.02")
Weight 200 g (0.44 lb)
