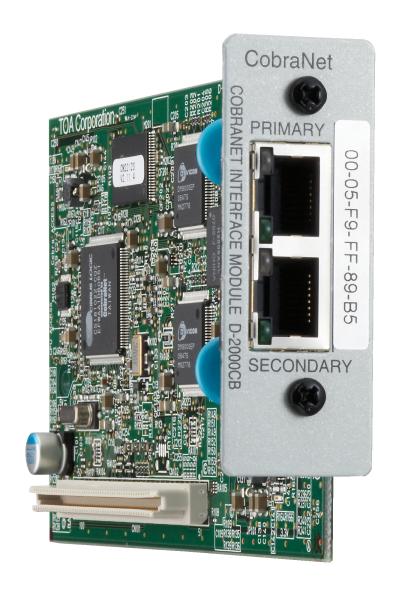

D-2000CB CobraNet Interface Module

D-2000CB

The D-2000CB Cobranet Interface Module is designed for use with the D-2008SP Digital Mixing Processor Unit. When mounted to the D-2008SP, it allows audio transmission between this D-2008SP and other one. Each function is set by the dedicated setting software on a PC.



QTY: Add to Request for quote Request for quote
Specification
Network I/F CobraNet: 100BASE-TX, PRIMARY/SECONDARY 2 system,
RJ45 connector, Enables decentralized installation, Audio transmission only
Connection cable: Shielded twisted pair (STP) Cat 5 or higher LAN cable
To be connected via the specified switching hub
Note: This network should be completely independent of other LAN.
Number of D-2008SP connection: Max. 4
Switching hub stage: Max. 7
Max extend distance: 100m (328.1 ft) (connected via a switching hub)
Input

16 channels, 20 bit/24 bit
Output

16 channels, 20 bit/24 bit
Sampling Frequency

48 kHz
Finish Panel: Pre-coated steel plate
Dimensions 25.5 (W) × 82.5 (H) × 144 (D) mm (1" × 3.25" × 5.67") (excluding projection)
Weight 100 g (0.22 lb)
Accessory Screw …1
