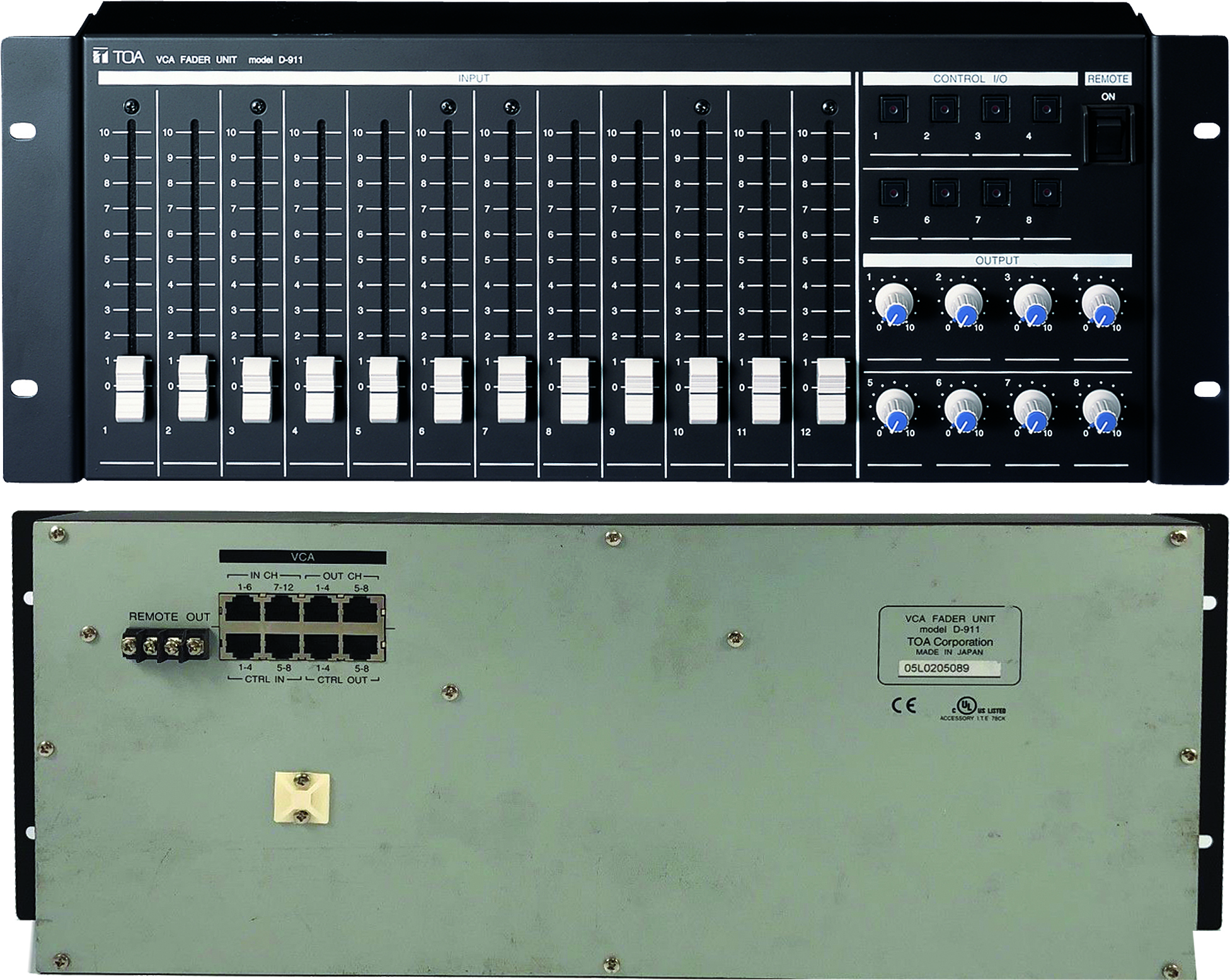

D-911 VCA Fader Unit

D-911

The D-911 is a dedicated VCA fader unit designed for use with the D-901 Digital Mixer, etc. Connecting the D-911 to the D-984VC, VCA control module permits the volume control of all channels and contact controls.



QTY: Add to Request for quote Request for quote
Specification
Power Supply 5 V DC (supplied from the optional D-984VC)
Connector RJ45 connector × 8
Input Fader Control Input fader (100 mm) × 12
Output Volume Control Output volume control × 8
Contact Control Illuminated switch × 8
Remote Output No-voltage make contact output (contact capacity: 30 V DC, 4 A)
Remote Switch Seesaw switch for activating the remote function of the power distributor
Finish Panel: Pre-coated steel plate, black, 30% gloss
Dimensions 482.6 (W) × 177 (H) × 61.3 (D) mm (excluding projection)
Weight 2.7 kg
Accessory Fader knob (Red, Yellow)…3 each, Volume knob (Red)…2,
Rack mounting screw…4, Rack mounting bracket (preinstalled on the unit)…2
