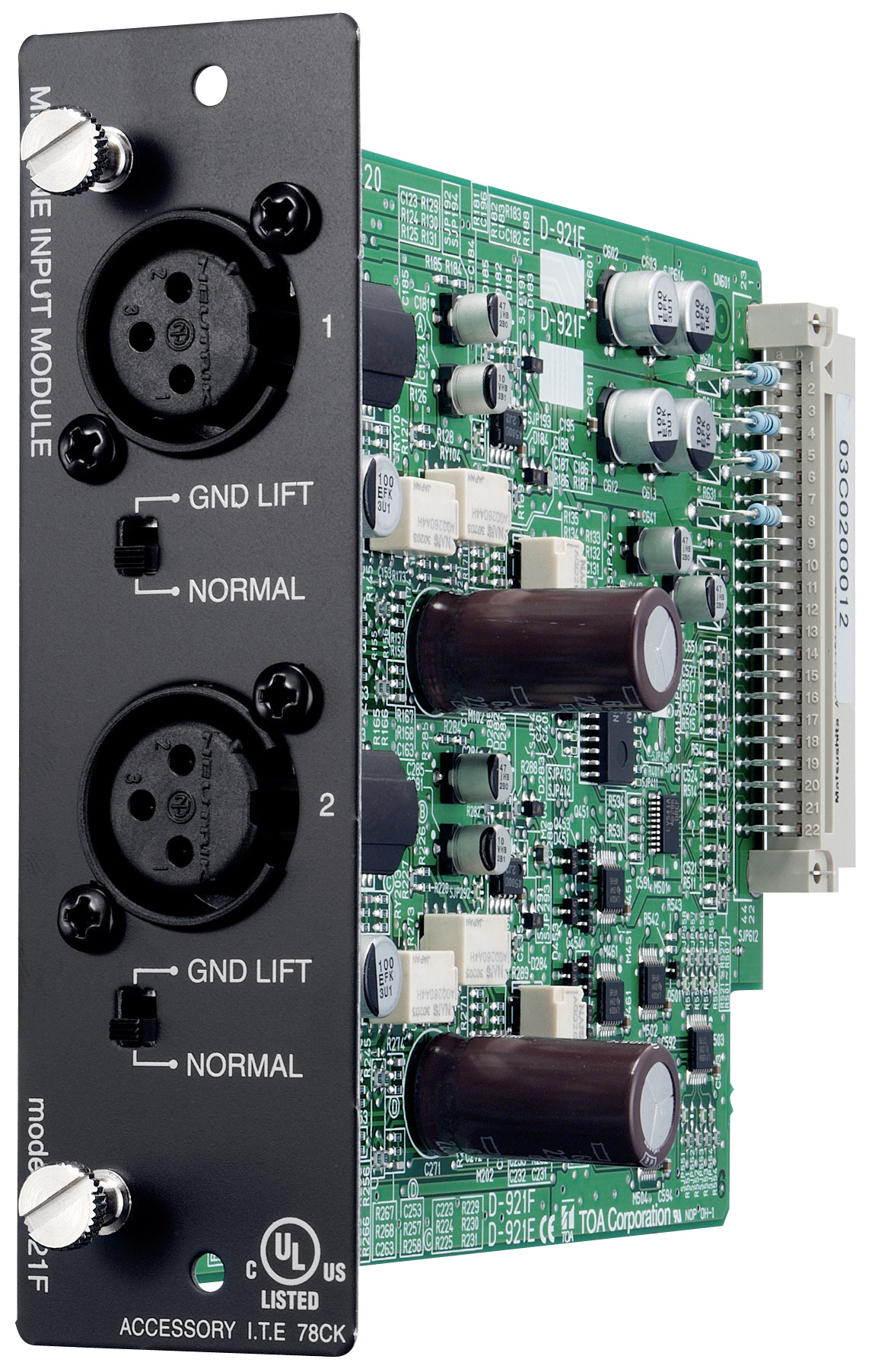

D-921F Mic/Line Input Module

D-921F

The D-921F is a 2-channel microphone/line input module designed for use with the D-901 Digital Mixer, etc. It is equipped with XLR connectors. Input sensitivity and phantom power setting can be performed at the main frame such as the D-901.



QTY: Add to Request for quote Request for quote
Specification
* 0 dB = 0.775 V
Input 2 channels, Mic/Line changeable
Mic: -50/-36 dB*, 4.7 kΩ, electronically-balanced,
equivalent to XLR-3-31 type
Line: -10/+4 dB*, 10 kΩ, electronically-balanced,
equivalent to XLR-3-31 type
Phantom power supply (can be used when set for the microphone)
15 V: D-901 (option), DP-K1 (option), D-2008SP (option)
12 V: SX-2100AI (option)
Ground lift switch
A/D Converter 24 bit
Sampling Frequency 48 kHz
Frequency Response 20 Hz - 20 kHz, ±1 dB (+4 dB* input)
Dynamic Range 100 dB (IHF-A weighted) or more (+4 dB* input)
Total Harmonic Distortion 0.05 % or less (+4 dB* input)
Finish Panel: Pre-coated steel plate, black, 30 % gloss
Dimensions 35 (W) × 119.5 (H) × 178.4 (D) mm
Weight 150 g
