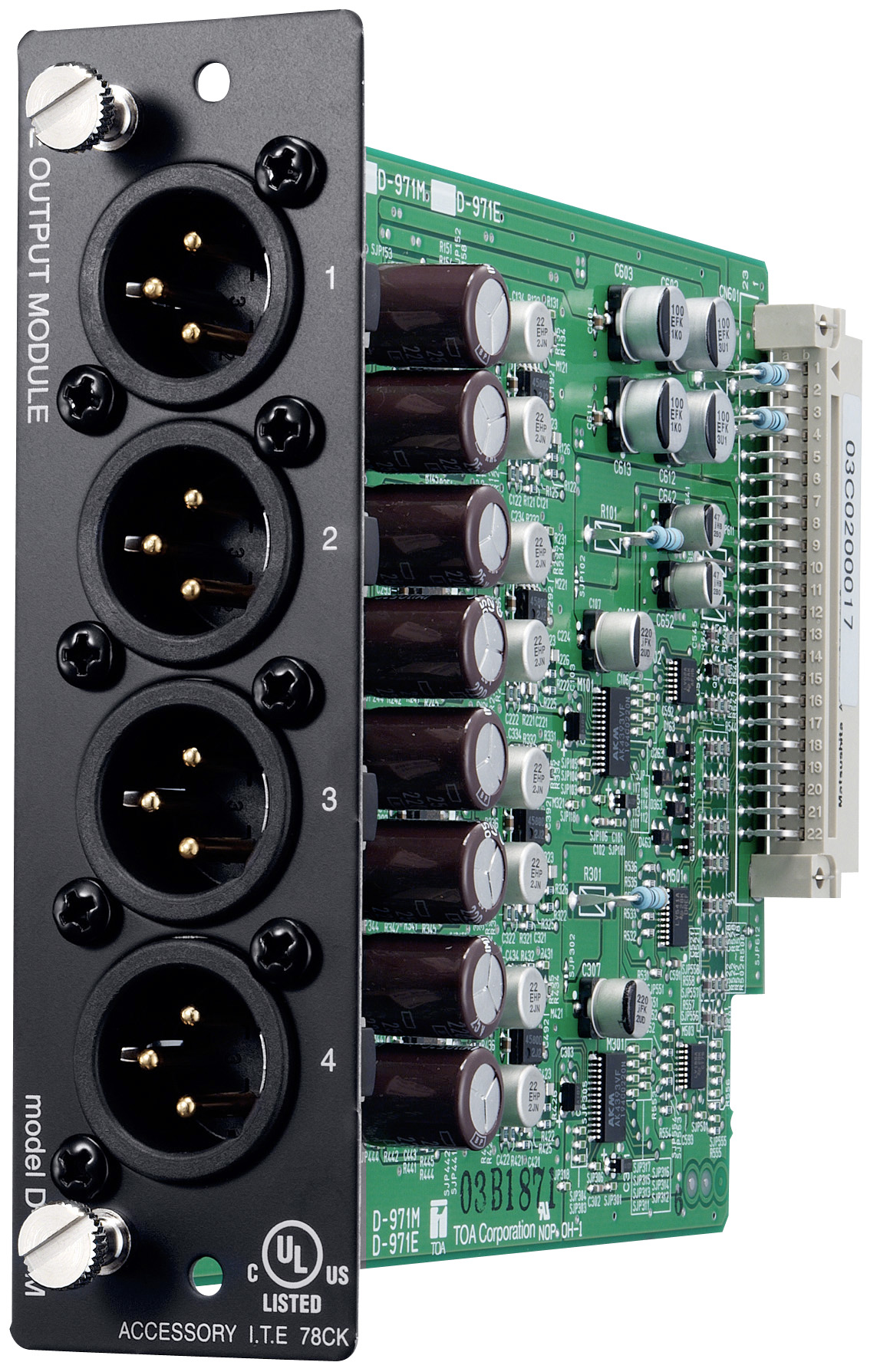

D-971M Line Output Module

D-971M

The D-971M is a 4-channel line output module designed for use with the D-901 Digital Mixer, etc. It is equipped with XLR connectors.



QTY: Add to Request for quote Request for quote
Specification
* 0 dB = 0.775 V
Output 4 channels, +4 dB*, adaptable load of over 600 Ω,
electronically-balanced, equivalent to XLR-3-32 type
D/A Converter 24 bits
Sampling Frequency 48 kHz
Frequency Response 20 - 20,000 Hz, ±1 dB
Dynamic Range Over 100 dB (IHF-A weighted)
Total Harmonic Distortion Under 0.05%
Finish Panel: Pre-coated steel plate, black, 30% gloss
Dimensions 35 (W) × 119.5 (H) × 178.4 (D) mm
Weight 165 g
