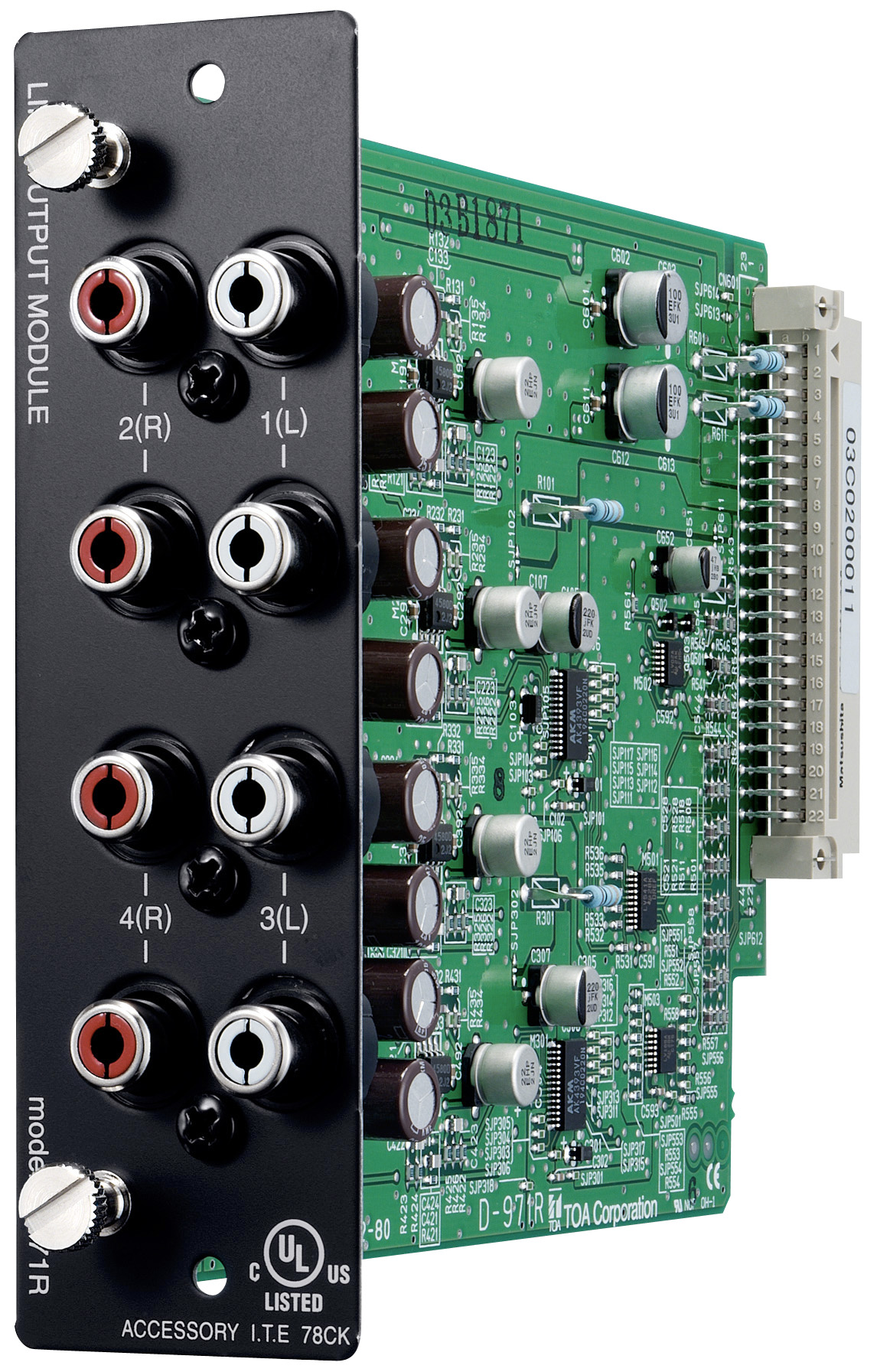

D-971R Line Output Module

D-971R

The D-971R is a 4-channel line output module designed for use with the D-901 Digital Mixer, etc. It is equipped with standard RCA pin jacks.



QTY: Add to Request for quote Request for quote
Specification
* 0 dB = 0.775 V
Output 4 channels (2 outputs for each channel), -10 dB*,
adaptable load of over 600 Ω, RCA pin jack
D/A Converter 24 bits
Sampling Frequency 48 kHz
Frequency Response 20 - 20,000 Hz, ±1 dB
Dynamic Range Over 100 dB (IHF-A weighted)
Total Harmonic Distortion Under 0.05%
Finish Panel: Pre-coated steel plate, black, 30% gloss
Dimensions 35 (W) × 119.5 (H) × 178.4 (D) mm
Weight 150 g
