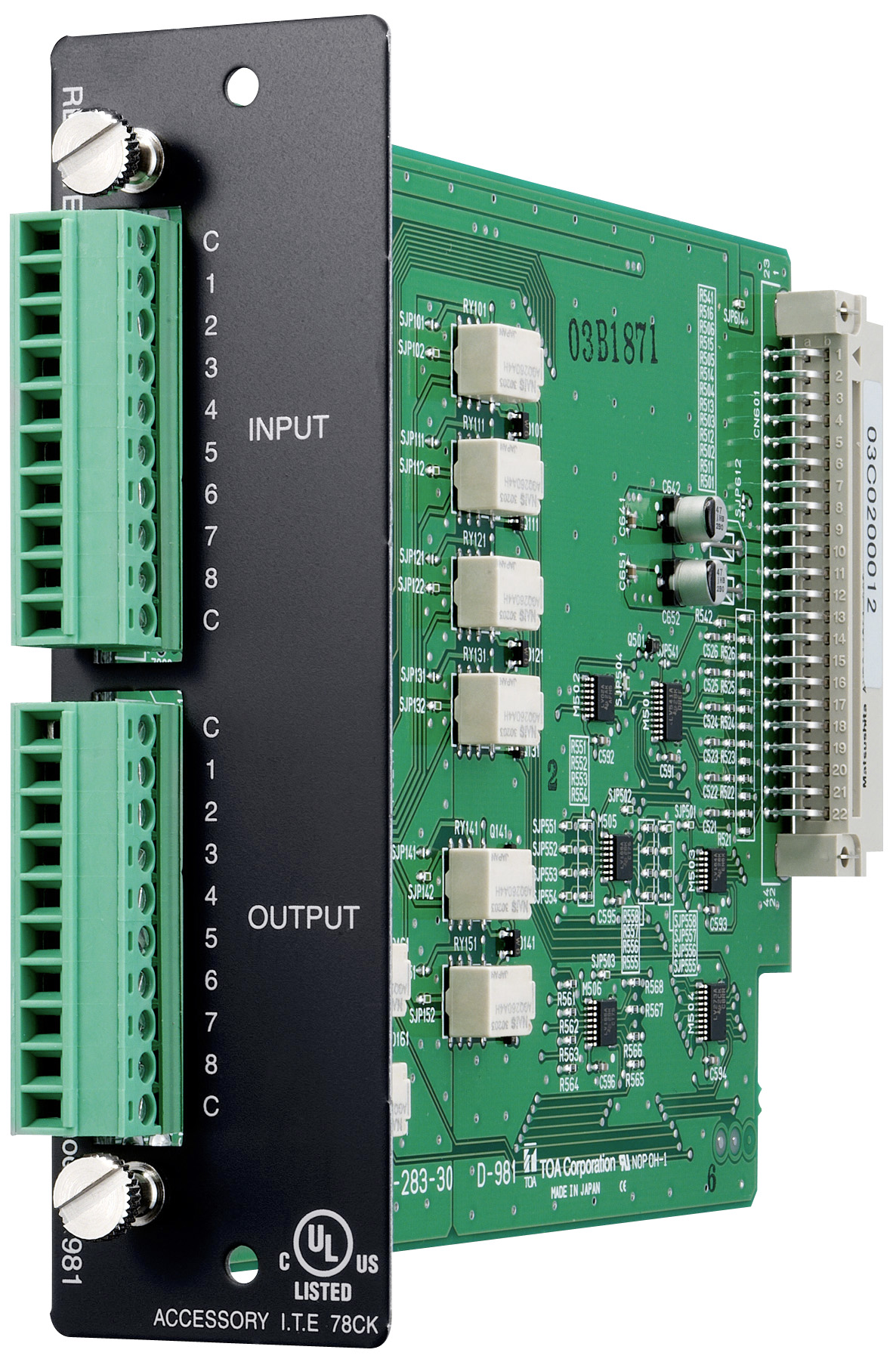

D-981 Remote Control Module

D-981

The D-981 is a remote control module designed for use with the D-901 Digital Mixer, etc. It permits preset memory recall, input/output channel volume control, stereo input selection and channel ON/OFF operation to be remotely controlled from external equipment. Tally output can also be provided for external control.



QTY: Add to Request for quote Request for quote
Specification
Contact Input COM + Terminals 1 - 8: Open voltage: 5 V DC, short-circuit current: 5 mA
removable terminal block (10 pins)
Control
Preset Memory Selection Any preset memory can be recalled.
Control method: No-voltage make of over 100 ms/
Volume Control Any input/output channel volume can be turned UP or Down.
Control method: 1 step variation for no-voltage make single pulse of over 100 ms
1 step continuous operation for every 70 ms for
no-voltage make of over 100ms. Can be reset when at break.
Variable range : -∞ dB to +10 dB
Channel Any input/output channel can be turned ON and OFF.
Control method: No-voltage make of over 100 ms/
no-voltage make single pulse of over 100 ms
Stereo Selection Input channel lines of the D-936R (optional), or the D-937SP (optional)
(4 stereo input module) can be selected.
Control method: No-voltage make of over 100 ms/
No-voltage make single pulse of over 100 ms
Contact Output COM + Terminals 1 - 8: No-voltage make contact input,
contact capacity: 24 V DC, 100 mA
removable terminal block (10 pins)
Finish Panel: Pre-coated steel plate, black, 30% gloss
Dimensions 35 (W) × 119.5 (H) × 178.4 (D) mm
Weight 125 g
Accessory Removable terminal plug (10 pins, preinstalled on the unit) …2
