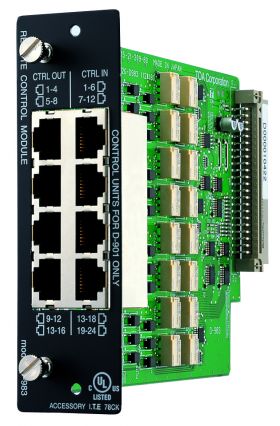

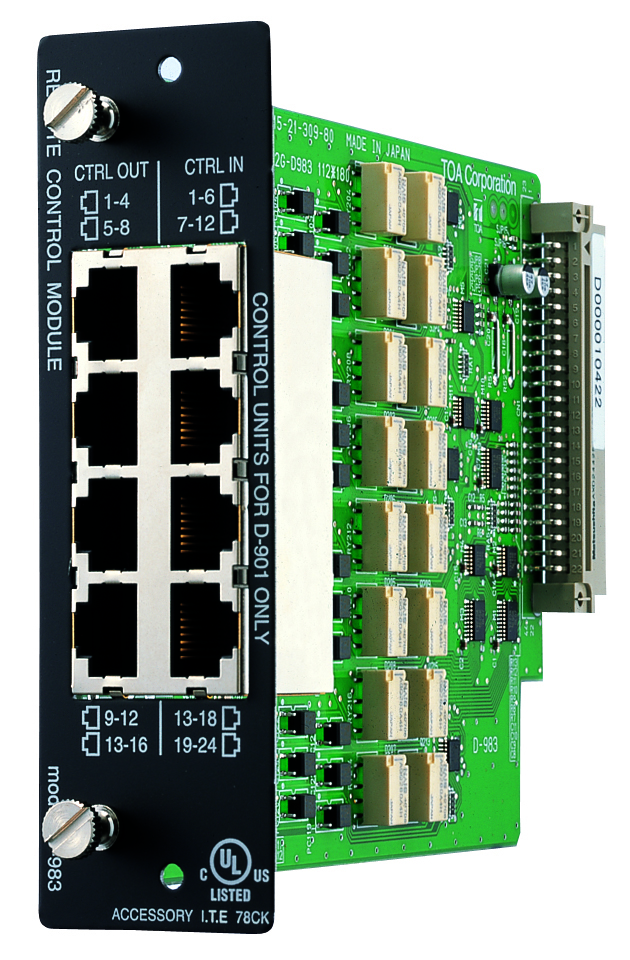

D-983 Remote Control Module

D-983

The D-983 is a remote control module designed for used with the D-901 Digital Mixer, etc. It permits preset memory recall, input/output channel volume control, stereo input selection and channel ON/OFF operation to be remotely controlled from external equipment. Tally output can also be provided for external control.



QTY: Add to Request for quote Request for quote
Specification
Contact Input COM + Terminal 1 - 24: Open voltage: 5 V DC,
short-circuit current: 5 mA, RJ45 connector × 4
Control
Preset Memory Selection Any preset memory can be recalled.
Control method: No-voltage make of over 100 ms/
No-voltage make single pulse of over 100 ms
Volume Control Any input/output channel volume can be turned UP or DOWN.
Control method: 1 step variation for no-voltage make single pulse of over 100 ms
1 step continuous operation for every 70ms for no-voltage
make of over 100ms. Can be reset when at break.
Variable Range: -∞ dB to +10 dB
Channel Any input/output channel can be turned ON and OFF.
Control method: No-voltage make of over 100 ms/
No-voltage make single pulse of over 100 ms
Stereo Selection Input channel lines of the D-936R (optional), or the D-937SP
(optional) (4 stereo input module) can be selected.
Control method: No-voltage make of over 100 ms/
No-voltage make single pulse of over 100 ms
Contact Output COM + Terminals 1 - 16: No-voltage make contact,
contact capacity: 24 V DC, 100 mA,
RJ45 connector × 4
Finish Panel: Pre-coated steel plate, black, 30% gloss
Dimensions 35 (W) × 119.5 (H) × 178.4 (D) mm
Weight 170 g
