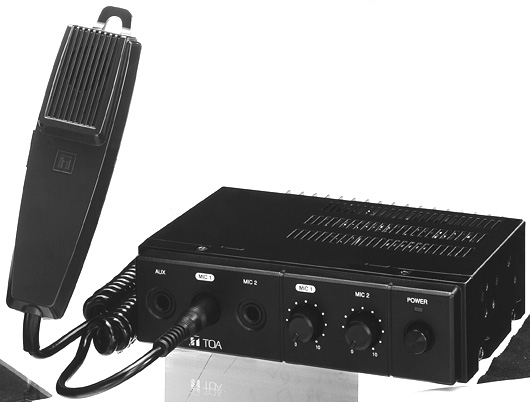

CA-160 (120W Max.) Car Amplifier

CA-160

The CA-160 is a 1-DIN size unit 60 W car amplifier designed for use with a 12 V car battery.



QTY: Add to Request for quote Request for quote
Specification
Power Source Standard voltage: 14 V DC
Usable voltage: 10 - 16 V DC (12 V battery used)
Power Consumption 9 A or less at rated output
Rated Output 60 W
Output Impedance 4 Ω (BRN), 8 Ω (ORG), Common (WHT)
Changeable by changing lead wire connections
Distortion Less than 5% (at 1,000 Hz rated output)
Frequency Response 100 - 10,000 Hz
Input Mic1, 2: 600 Ω, 4 mV, phone jack
Aux : 10 kΩ, 500 mV, phone jack
Finish Front panel: ABS resin, black
Case : Zinc plated steel sheet
Dimensions 178 (W) × 50 (H) × 170 (D) mm (Mounting device excluded)
Weight 1.2 kg
Accessory Microphone holder …… 1, Mounting bracket …… 1, Mounting screw …… 1set,
Fuse (12 A) …… 1, Connection cord …… 1set
Accessory Microphone Unidirectional dynamic type with talk switch
Impedance: 600 Ω
Sensitivity : -53 dB (1 kHz, 0 dB = 1 V/Pa)
