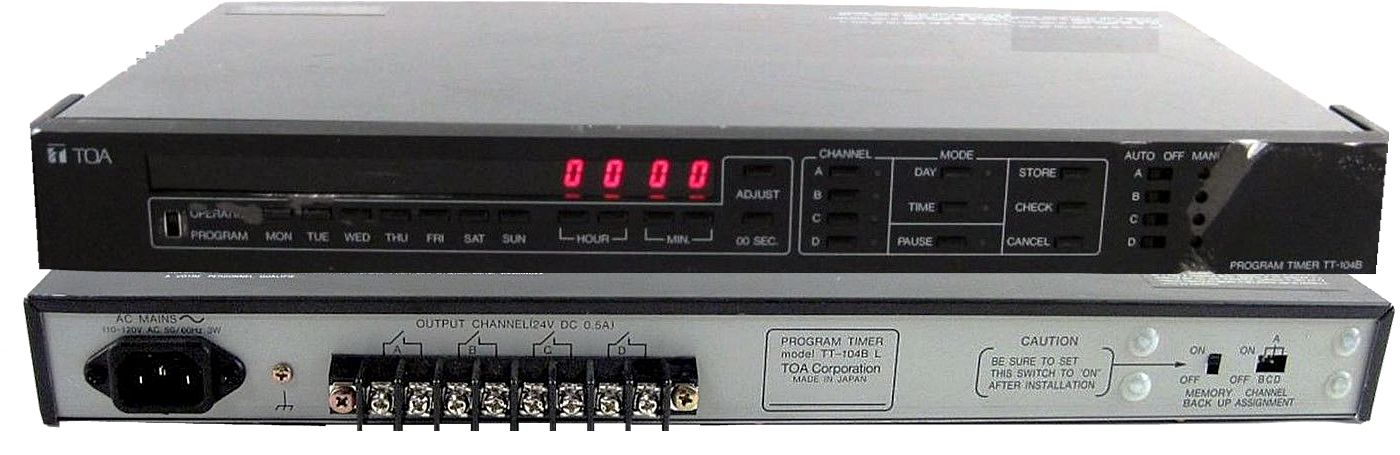

TT-104B Program Timer

TT-104B L

The TT-104B is a program timer that comes with 4 outputs and controls 4 different broadcasts. With use of an optional rack-mounting bracket, it can be mounted in an EIA Standard equipment (occupying 1 unit size).

QTY: Add to Request for quote Request for quote
Specification
Power Source 110 - 120 V AC, 50/60 Hz
Power Consumption 3 W
Displayed Contents Day of the week, hour and minute
Programmable Item Day of the week, hour, minute, output channel
Number of Channels 4 channels (A,B,C,D)
Output System No-voltage (DRY) make contact (5-second pulse make output)
Output Capacity 24 V DC, 0.5 A
Output Terminal M4 screw terminal, distance between barriers: 9 mm
Program Capacity 30 steps per channel
Clock Accuracy ±5 seconds per month (25℃)
Power Outage Protection Period 100 hours
Operating Temperature 0℃ to +50℃
Finish Panel: Aluminum, black, 30% gloss, paint
Case: Pre-coated steel plate, black
Dimensions 420 (W) × 47.5 (H) × 246.5 (D) mm
Weight 2.5 kg
Option Rack-mounting bracket: MB-15B
