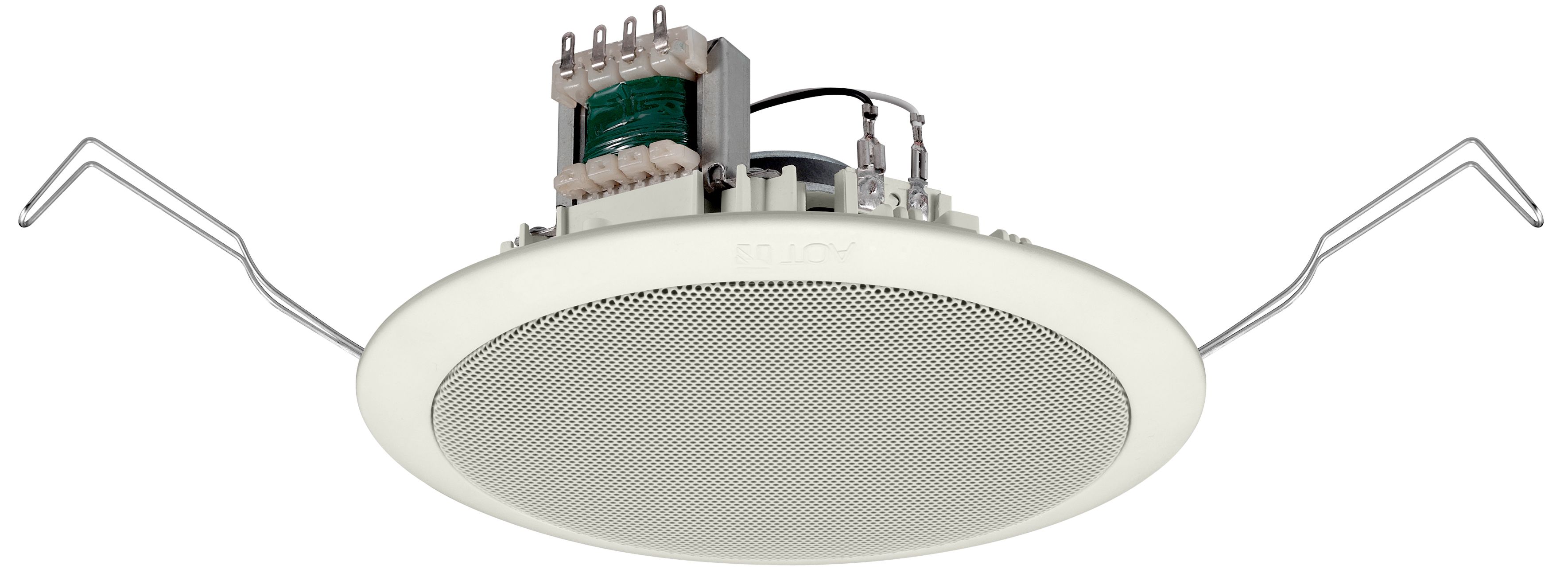

PC-648R Ceiling Speaker

PC-648R F00

Integrated with a resin panel and speaker frame, the PC-648R is the ceiling mount speaker with a metal attached. It features spring clamp mechanism for easy speaker mounting to the ceiling. The input impedance can be easily changed by changing the tap position of the transformer.



QTY: Add to Request for quote Request for quote
Specification
Rated Input 6 W (100 V line), 3 W (70 V line)
Rated Impedance 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
Sensitivity 90 dB (1 W, 1 m) (500 - 5,000 Hz, pink noise)
Frequency Response 100 - 18,000 Hz (peak -20 dB)
Dispersion (1 to 4k Hz avg.) 150° Horizontal   x   150° Vertical
Speaker Component 12 cm (5") cone-type
Dimensions for Fixing Hole Mounting hole: φ145±5 mm (φ5.71"±0.2")
Ceiling thickness: 5 - 25 mm (0.2" - 0.98")
Speaker Mounting Method Spring clamp
Finish Baffle: Polypropylene resin, off-white (RAL 9016 (traffic white) or equivalent color)
Grille: Surface-treated steel plate net, off-white (RAL 9016 or equivalent color),
paint
Dimensions φ168 × 77 (D) mm (φ6.61" × 3.03")
Weight 470 g (1.04 lb)
Accessory Paper pattern …1

Note: Paint colour change effective July 2015. Changed from RAL 9010 (pure white) to RAL 9016 (traffic white).
