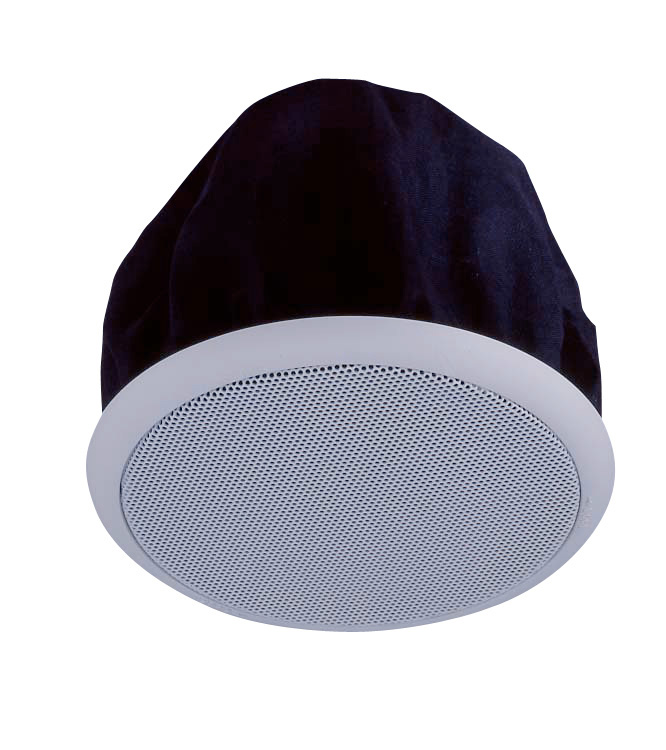

F-1522SC Wide-Dispersion Ceiling Speaker

F-1522SC

The F-1522SC ceiling and wall-mounted speaker covers an extremely wide area and can be used for 25, 70 and 100 V line applications. Well-balanced sound can be heard uniformly at any location.



QTY: Add to Request for quote Request for quote
Specification
Rated Input 6 W (High Impedance)
Power Handling Capacity Continuous pink noise: 9 W (8 Ω), 6 W (16 Ω)
Continuous program: 18 W (8 Ω), 12 W (16 Ω)
Impedance 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W)
70 V line: 830 Ω (6 W), 1.7 kΩ (3 W), 3.3 kΩ (1.5 W)
25 V line: 830 Ω (0.75 W), 1.7 kΩ (0.4 W), 3.3 kΩ (0.2 W)
8 Ω
Sound Pressure Level 88 dB (1 W, 1 m)
Frequency Response 65 Hz - 18 kHz (-10 dB), 45 Hz - 20 kHz (-20 dB)
at installation in 1/2 free sound field
(Measured by installing the unit in the center of a ceiling.)
Speaker Component 10 cm cone-type
Mounting Hole φ135 mm (Maximum ceiling thickness: 37 mm)
Input Terminal Push-in connector (Bridging terminal-2 branch type)
Usable Cable 600 V Vinyl-insulated cable (IV wire or HIV wire)
Solid copper wire: φ0.8 - φ1.6 mm (equivalent to AWG No. 20 - 15)
7-core twisted copper wire: 0.75 - 1.25 m㎡ (equivalent to AWG No. 18 - 17)
Finish Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black
Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint
Punched net: Steel plate, white, paint
Dust cover: Spunbond Polypropylene Nonwoven Fabric
Dimensions φ155 × 117 (D) mm
Weight 1 kg (including panel)
Accessory Panel …1, Paper pattern …1
Option Reinforcement ring: HY-RR1
