F-122CU2 Wide-Dispersion Ceiling Speaker

F-122CU2

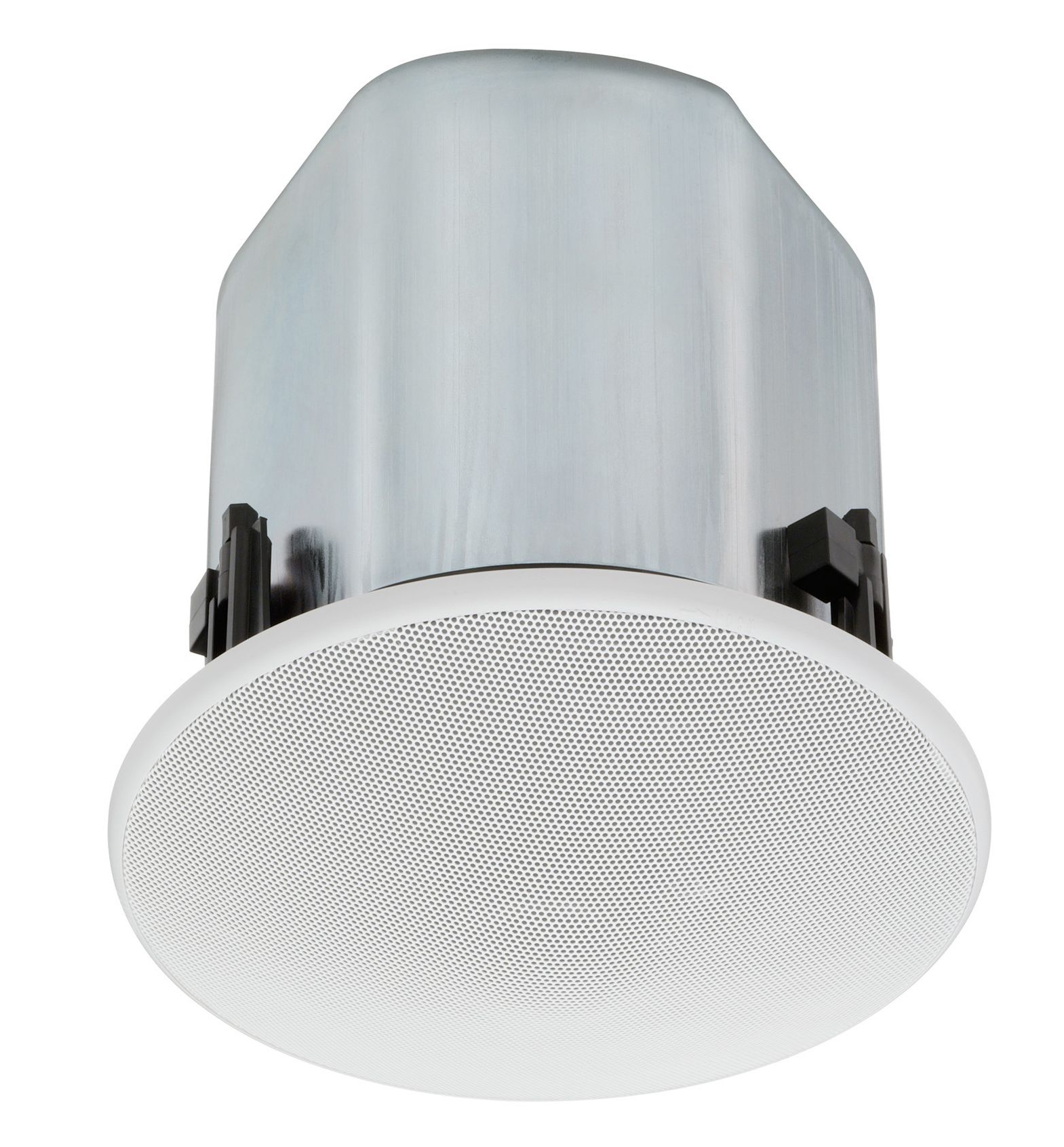

The F-122CU2 ceiling and wall-mounted speaker covers an extremely wide area and can be used for 25 and 70 V line applications. Well-balanced sound can be heard uniformly at any location.



QTY: Add to Request for quote Request for quote
Specification
Enclosure Bass reflex type
Rated Input 30 W (High Impedance)
Power Handling Capacity Continuous pink noise: 60 W (8 Ω), 30 W (16 Ω)
Continuous program: 120 W (8 Ω), 60 W (16 Ω)
Impedance 70 V line: 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
25 V line: 170 Ω (3.7 W), 330 Ω (1.9 W), 1 kΩ (0.6 W), 3.3 kΩ (0.2 W), 10 kΩ (0.06 W)
16 Ω, 8 Ω
Sensitivity 90 dB (1 W, 1 m)
Frequency Response 70 Hz - 20 kHz (-10 dB), 50 Hz - 20 kHz (-20 dB)
at installation in 1/2 free sound field
(Measured by installing the unit in the center of a ceiling.)
Speaker Component 12 cm cone-type
UL Code UL1480 (UUMW/UEAY), UL2043, CAN/CSA C22.2 No.205 (UEAY7)
Mounting Hole φ200 mm (Maximum ceiling thickness: 37 mm)
Input Terminal Removable locking connector with screw-down terminals
(2 input terminals and 2 bridge terminals)
Usable Cable Solid copper wire: φ1.0 - φ1.6 mm (equivalent to AWG No. 18 - 14)
Stranded copper wire: 0.75 - 2.5 m㎡ (equivalent to AWG No. 18 - 14)
Finish Enclosure: Steel plate, plating
Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black
Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint
Punched net: Steel plate, white, paint
Dimensions φ230 × 238 (D) mm
Weight 4.4 kg (including mounting accessories)
Accessory Panel …1, Tile bridge …1, Safety wire …1, Paper pattern …1
Option  Controller module: E-03R,
Back can: HY-BC1, Trim ring: HY-TR1
