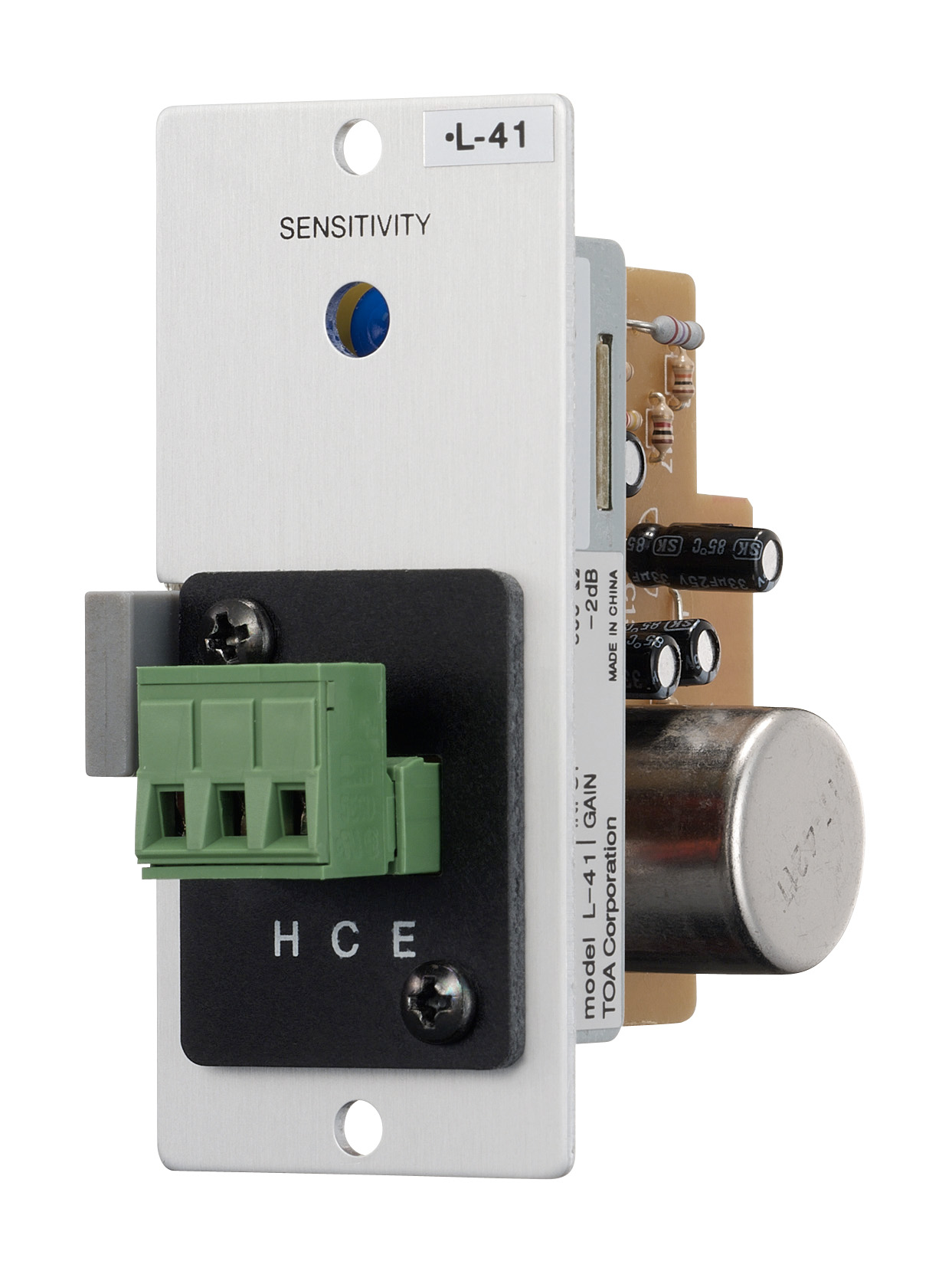

L-41S Line Matching Input with Mute-Send

L-41S

- For Applications Requiring 600 ohm Line Matching. - Transformer Isolation (600 ohms) minimizes ground loop problems when connecting remote equipment (greater than 15 feet) - Signal At Input Terminals Activates Both Mute Bus #1 and Mute Bus #2 Buses By Default (cut diode(s) to disconnect individual mute bus) - Connector:removable terminal block.



QTY: Add to Request for quote Request for quote
Specification
Faceplate Controls Mute send sensitivity
PCB Controls Mute bus selection
Input Impedance 600 ohms, balanced transformer-isolated
Sensitivity -16 dBu, min. -30 dBu to activate mute function
Gain -2 dB
