PE-64 Pendant Speaker

PE-64

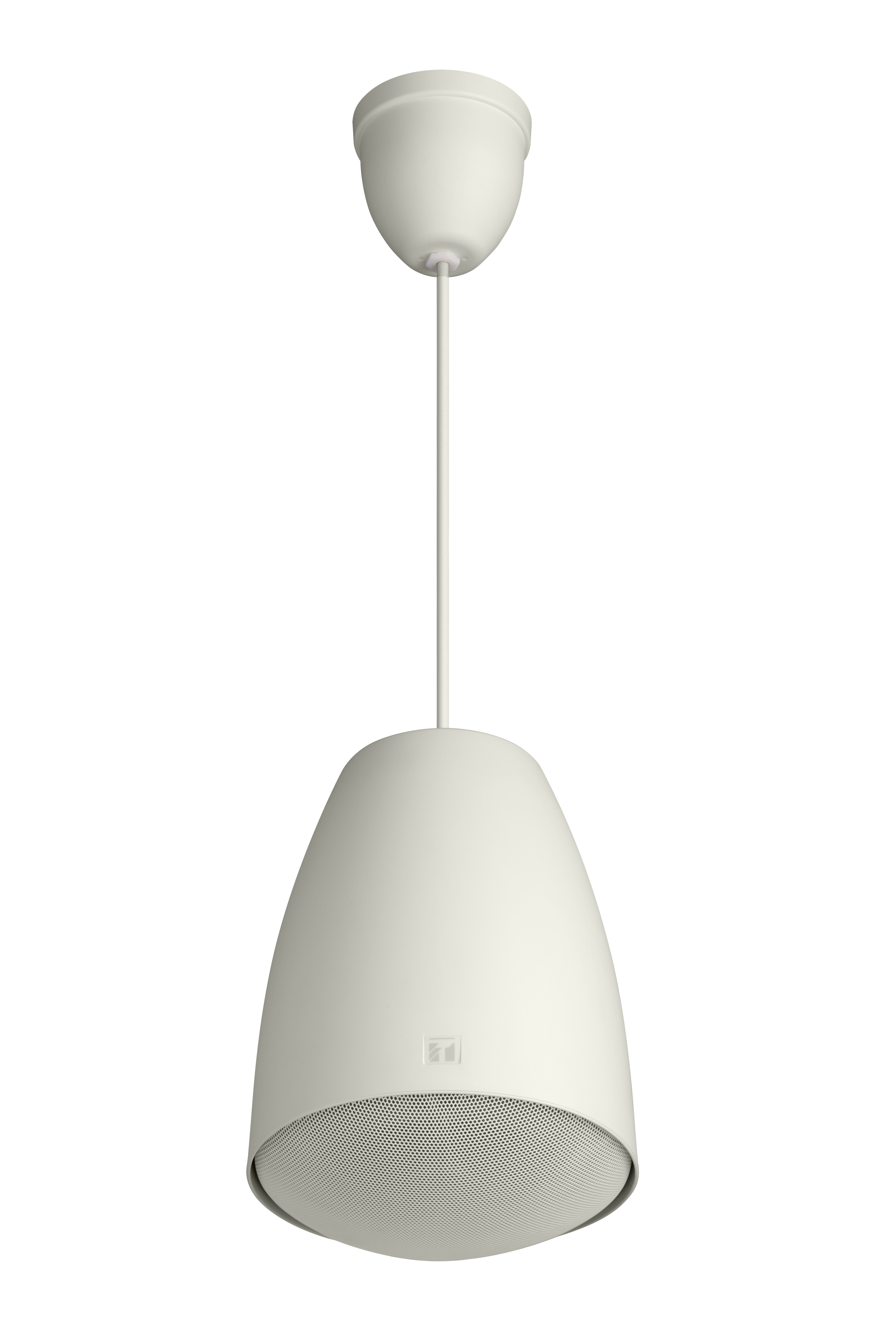

The PE-64 is a pendant speaker designed for ceiling suspension installations. Considered in architectural design, it can blend in with lighting equipment. A directly-attached 5 m (16.4 ft) cable allows the speaker to be suspended from the high ceiling. The PE-64 is driven on high-impedance (100 V and 70 V) line. The input power (impedance) can be easily changed at the upper side of the speaker. The speaker is easy to repaint so as to meet a wide range of design needs.





QTY: Add to Request for quote Request for quote
Specification
Enclosure Bass-reflex type
Rated Input 6 W (100 V line), 3 W (70 V line)
Rated Impedance 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
Sensitivity 90 dB (1 W, 1 m) (500 - 5,000 Hz, pink noise)
Frequency Response 100 - 18,000 Hz (peak -20 dB)
Speaker Component 12 cm (5") cone-type
Speaker Cord 2-core cabtyre cord 5 m (16.4 ft)
Applicable Cable 600 V vinyl-insulated cable (IV wire or HIV wire)
Solid copper wire: φ0.8 - φ1.6 mm (equivalent to AWG 20 - 14)
7-core twisted copper wire: 0.75 - 1.25 m㎡ (equivalent to AWG 18 - 16)
Connection Push-in connector (bridging terminal-2 branch type)
Finish Enclosure: HIPS resin, off-white (RAL 9010 or equivalent color)
Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color), paint
Dimensions φ186 × 251 (H) mm (φ7.32" × 9.88") (unit only)
Weight 1.5 kg (3.31 lb) (unit only)
Accessory Ceiling bracket …1, Mounting hanger …1, Ceiling cover …1,
Speaker mounting screw (4 × 16)…4
