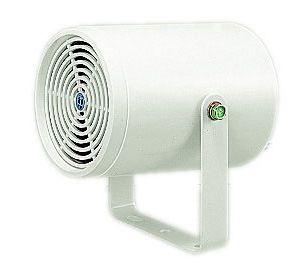

PJ-100W Projection Speaker

PJ-100W

The PJ-100W Projection Speaker is designed for indoor use. The built-in terminal board provides an easy cable connection and allows bridge wiring. Its wide frequency range makes it suitable for use in both paging and BGM applications.



QTY: Add to Request for quote Request for quote
Specification
Rated Input 10 W (50 V, 70 V, 100 V Line)
Input Impedance 100 V Line : 1 kΩ (10 W), 2 kΩ (5 W), 4 kΩ (2.5 W)
70 V Line : 500 Ω (10 W), 1 kΩ (5 W), 2 kΩ (2.5W), 4 kΩ (1.25 W)
50 V Line : 250 Ω (10 W), 500 Ω (5 W), 1 kΩ (2.5 W), 2 kΩ (1.25 W),
4 kΩ (0.63 W)
Preset Impedance 1 kΩ
Sound Pressure Level 92 dB (1 m, 1 W) at 1 kHz
Speaker Component 12 cm
Frequency Response 65 Hz - 15 kHz
Finish Cabinet, Cover: ABS Resin, off-white
Bracket: SPCC, off-white
Dimensions 160 (W) × 200 (H) × 195 (D) mm (6.3" × 7.87" × 7.68")
Weight 1.8 kg (3.97 lb)
Note: Avoid installing the speaker in locations which vibrate considerably or under environments easy to be oil-contaminated.
