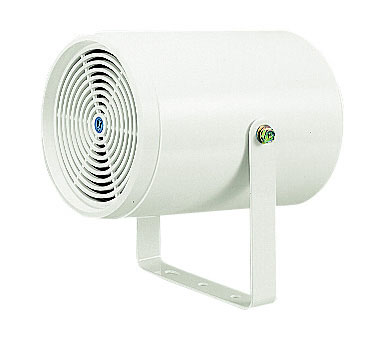

PJ-200W Projection Speaker

PJ-200W

The PJ-200W Projection Speaker is designed for indoor use. The built-in terminal board provides an easy cable connection and allows bridge wiring. Its wide frequency range makes it suitable for use in both paging and BGM applications.



QTY: Add to Request for quote Request for quote
Specification
Rated Input 20 W (50 V, 70 V, 100 V Line)
Input Impedance 100 V Line : 500 Ω (20 W), 1 kΩ (10 W), 2 kΩ (5 W)
70 V Line : 250 Ω (20 W), 500 Ω (10 W), 1 kΩ (5 W), 2 kΩ (2.5W)
50 V Line : 125 Ω (20 W), 250 Ω (10 W), 500 Ω (5 W), 1 kΩ (2.5 W),
2 kΩ (1.25 W)
Preset Impedance 500 Ω
Sound Pressure Level 95 dB (1 m, 1 W) at 1 kHz
Speaker Component 16 cm
Frequency Respons 50 Hz - 20 kHz
Finish Cabinet, Cover: ABS Resin, off-white
Bracket: SPCC, off-white
Dimensions 200 (W) × 255 (H) × 250 (D) mm (7.87" × 10.04" × 9.84")
Weight 2.5 kg (5.51 lb)
Note: Avoid installing the speaker in locations which vibrate considerably or under environments easy to be oil-contaminated.
