T-01S T

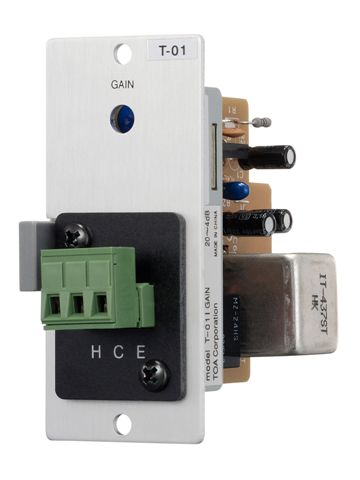

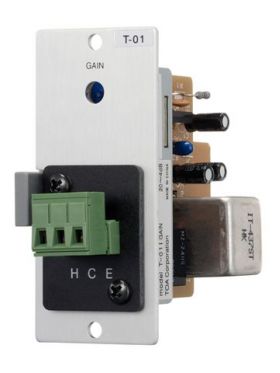

T-01S T Line Output Module

T-01S T

The T-01S is a line output module to be used in conjunction with the 900 series components and other TOA's equipment. It has a transformer balanced line output with removable terminal block connector, and gain control.



QTY: Add to Request for quote Request for quote
Specification
* 0 dB=1 V
Power Source 24 V DC (supplied from the main frame)
Current Consumption 35 mA
Output Level Adjustable -22 to -6 dB* (at 600 Ω terminated, input: -20 dB*)
Output Impedance 600 Ω, balanced transformer-isolated
Frequency Response 20 Hz - 20 kHz ±2.5 dB
Distortion 0.1 % or less (1 kHz, output: 0 dB*)
Noise Level -90 dB* (20 Hz - 20 kHz BPF)
Gain 4 - 20 dB
Connector Removable terminal block (3P)
Dimensions 35 (W) × 78 (H) × 88 (D) mm (1.38 × 3.07" × 3.46")"
Weight Max. 95 g (0.21 lb)
