H-1 2-Way Flush-Mount Speaker System

H-1 EX

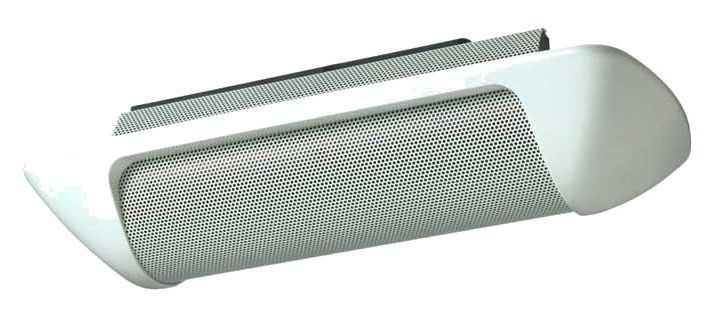

The H-1 is a cylinder-shaped, small flush-mount 2-way speaker that ensures quality sound reproduction. The mounting angle for its enclosure can be adjusted for up to 90 degrees.



QTY: Add to Request for quote Request for quote
Specification
Enclosure Sealed type
Power Handling 90 W (continuous program/4 Ω)
30 W (continuous pink noise/4 Ω)
Rated Input 12 W (16 Ω, high impedance)
Rated Impedance 4 Ω, 16 Ω
100 V line: 830 Ω (12 W), 1.7 kΩ (6 W), 3.3 kΩ (3 W)
70 V line: 420 Ω (12 W), 830 Ω (6 W), 1.7 kΩ (3 W), 3.3 kΩ (1.5 W)
Sound Pressure Level 85 dB (1 W, 1 m) at installation in 1/2 free sound field
(Measured by installing the unit in the center of a wall.)
Dispersion (1 to 4k Hz avg.) 180 degrees  x  180 degrees
Frequency Response 120 - 20,000 Hz
Speaker Component Low frequency: 8 cm × 5 cm cone-type
High frequency: Balanced dome-type
Input Terminal Detachable screw terminal, (+)/(-) 2 each (for bridging connection)
Usable Cable Solid cable, stranded cable: 0.2 - 2.5 m㎡ (AWG No. 24 - 14 equivalent)
Finish Cover: Fire-resistant ABS resin, white, paint
Punched net: Steel plate, white, paint
Adapter frame: Stainless steel
Dimensions 312 (W) × 126 (H) × 90 (D) mm
Weight 1.5 kg (including adapter frame)
Accessory Adapter frame ……1, Mounting screw (M4 × 25) ……4, Hole pattern paper ……1
Other Feature Enclosure mounting angle: Up to 90 degrees adjustable
※ When installing, mount the Adapter Frame as an electrical box cover. (The Adapter Frame is also available as an optional accessory under the model number of HY-H1.)
※ It is also possible to mount the speaker directly to the electrical box (without a cover).
