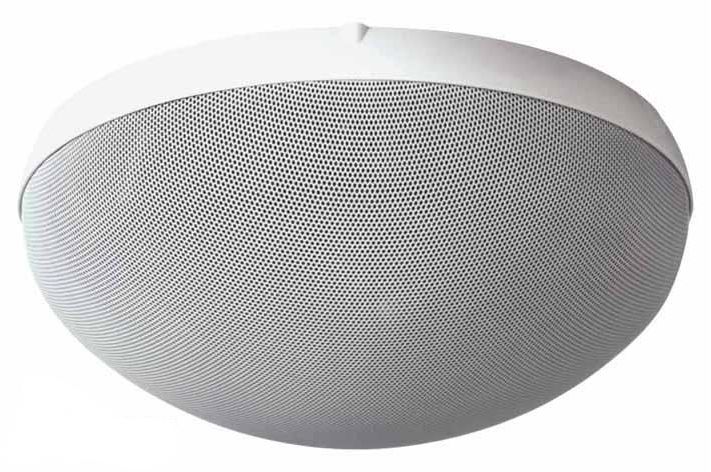

H-2 2-Way Surface-Mount Speaker System

H-2 EX

The H-2 is a dome-shaped, small surface-mount 2-way speaker that ensures quality sound reproduction. The angle of speaker can be adjusted for 360 degrees parallel to the mounting surface.



QTY: Add to Request for quote Request for quote
Specification
Enclosure Sealed type
Power Handling 120 W (continuous program/4 Ω), 40 W (continuous pink noise/4 Ω)
Rated Input 12 W (16 Ω, high impedance)
Rated Impedance 4 Ω, 16 Ω
100 V line: 830 Ω (12 W), 1.7 kΩ (6 W), 3.3 kΩ (3 W)
70 V line: 420 Ω (12 W), 830 Ω (6 W), 1.7 kΩ (3 W), 3.3 kΩ (1.5 W)
Sensitivity 88 dB (1 W, 1 m) at installation in 1/2 free sound field
(Measured by installing the unit in the center of a wall.)
Dispersion (1 to 4k Hz avg.)  125 degrees  x  180 degrees
Frequency Response 100 Hz - 20 kHz
Speaker Component Low frequency: 10 cm cone-type, High frequency: Balanced dome-type
Input Terminal Detachable screw terminal, (+)/(-) 2 each (for bridging connection)
Usable Cable Solid cable, stranded cable: 0.2 - 2.5 m㎡ (AWG No. 24 - 14 equivalent)
Finish Punched net: Steel plate, white, paint
Frame: Fire-resistant ABS resin, white, paint
Base frame: Steel plate
Dimensions φ268 × 111 mm
Weight 2.1 kg (including base frame)
Accessory Base frame ……1, Electrical box mounting screw ……1 set
Usable Electrical Box 1-gang type (with cover)(*1)
Other Feature Angle of speaker: 360 degrees adjustable in parallel to the mounting surface
(*1) Without using an electrical box, mounting the supplied base frame directly to a wall or ceiling allows the speaker installation.
