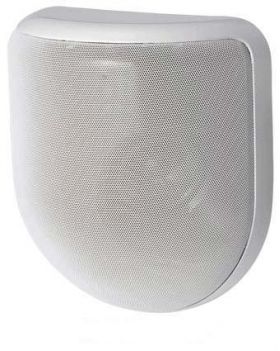

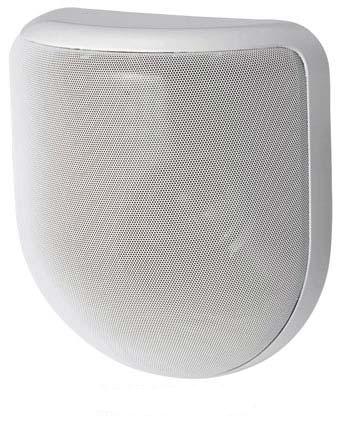

H-3 2-Way Wall Mount Speaker System

H-3 EX

The H-3 is a wall-mountable 2-way speaker that provides horizontally-wide dispersion.



QTY: Add to Request for quote Request for quote
Specification
Enclosure Sealed type
Power Handling Capacity 150 W (Continuous program/8 Ω)
50 W (Continuous pink noise/8 Ω)
Rated Input 30 W (16 Ω, high impedance)
Rated Impedance 8 Ω, 16 Ω
100 V line: 330 Ω (30 W), 670 Ω (15 W), 1.3 kΩ (7.5 W)
70 V line: 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 1.3 kΩ (3.75 W)
Sensitivity 89 dB (1 W, 1 m) at installation in 1/2 free sound field
(Measured by installing the unit in the center of a wall.)
Dispersion (1 to 4k Hz avg.) 180°  x  180°
Frequency Response 100 Hz - 20 kHz (-10 dB) at installation in 1/2 free sound field
(Measured by installing the unit in the center
of a wall.)
Crossover Frequency 4 kHz
Speaker Component Low frequency: 10 cm cone-type × 2
High frequency: 2.5 cm dome-type (neodymium magnet)
Input Terminal Detachable screw terminal, (+)/(-) 2 each (for bridging connection)
Usable Cable Solid cable, stranded cable: 0.2 - 2.5 m㎡ (AWG No.24 - 14)
Finish Enclosure: Fire-resistant ABS resin, black
Front frame: Fire-resistant ABS resin, off-white, paint
Punched net: Steel plate, off-white, paint
Base frame: Steel plate, plating
Dimensions 295 (W) × 318 (H) × 129 (D) mm
Weight 3.3 kg
Accessory Front grille ……1, Base frame ……1, Electrical box mounting screw ……1 set
Usable Electrical Box 2-gang type
