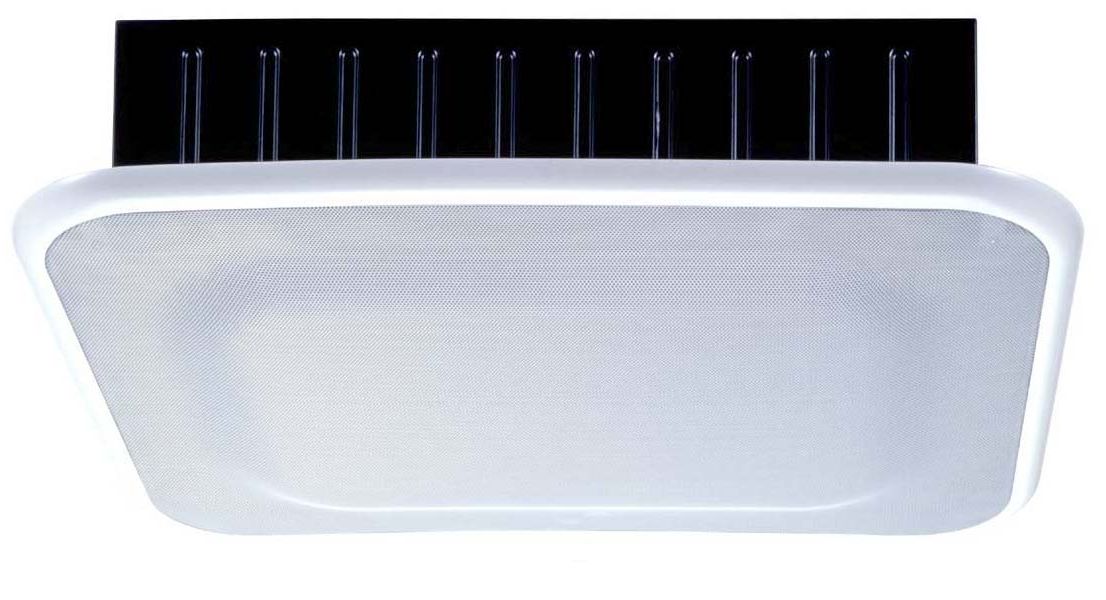

HB-1 Wall/Ceiling Mount Subwoofer Speaker System

HB-1

The HB-1 is a high-power, wall/ceiling-mounted subwoofer system employing a 20 cm speaker unit. Although small in size, the HB-1 provides clear super-low frequency sound reproduction thanks to its Acoustic Super Woofer enclosure construction.



QTY: Add to Request for quote Request for quote
Specification
Enclosure Acoustic Super Woofer
Power Handling Capacity 240 W (Continuous program, 40 - 200 Hz)
80 W (Continuous pink noise, 40 - 200 Hz)
Rated Impedance 8 Ω
Sound Pressure Level 91 dB (1 W, 1 m) installation in 1/2 free sound field
(Measured by installing the unit in the center of a ceiling or wall.)
85 dB (1 W, 1 m) installation in free sound field (Measured in anechoic chamber.)
Frequency Response 45 - 200 Hz (-10 dB) installation in 1/2 free sound field
(Measured by installing the unit in the center of a ceiling or wall.)
Speaker Component 20 cm cone speaker
Input Terminal Detachable screw terminal, (+)/(-) 2 each (for bridging connection)
Usable Cable Solid cable, stranded cable: 0.2 - 2.5 m㎡ (AWG No.24 - 14)
Finish Enclosure: Steel plate, black, paint
Front frame: Fire-resistant ABS resin, off-white, paint
Punched net: Steel plate, off-white, paint
Mounting bracket: Steel plate, black, paint
Dimensions 430 (W) × 544 (H) × 135 (D) mm
Weight 11 kg (including front grille and mounting bracket)
Accessory Front frame……1, Mounting bracket……1set, Anchor piece……2, Stud holder……4, Screw……1set
Option Matching transformer: MT-S0601 (rated 60 W)
