Q-HY-BC2-Shallow Back Can

Q-HY-BC2 - Shallow Back Can

Q-HY-BC2

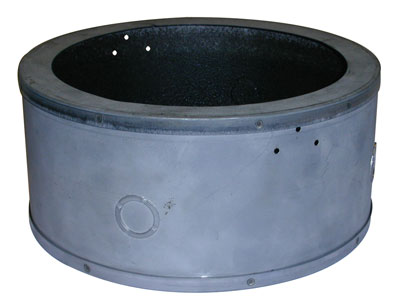

The Q-HY-BC2 (Shallow) Back Can is a metal case that can be attached to TOA’s F-2352SC flush-mount ceiling speaker for both exposed and flush-mounted applications. The Q-HY-BC2 will allow the use of TOA’s F-2352SC ceiling speaker in a space where a common speaker/back can combinations will not fit due to depth considerations. The Back Can could also be used in exposed ceiling and can be hung from a ceiling suspension pipe.

QTY: Add to Request for quote Request for quote
Specification
Enclosure Galvanneal (satin-coat) construction, unpainted
Anti-resonance spray coating applied to the interior of the enclosure
Dimensions 10” outer-diameter, 4 5/8” depth, 8 1/8” speaker mounting-hole
Knockouts
  • Four ‘2-way‘ knock-outs spaced evenly around the body (located 2” from the back edge of the enclosure to the centre of the knock-out)
  • One ‘2-way’ knock-out centred on the back of the enclosure
  • Two 7/8” knock-outs on 4 1/2” diameter on back of the enclosure
