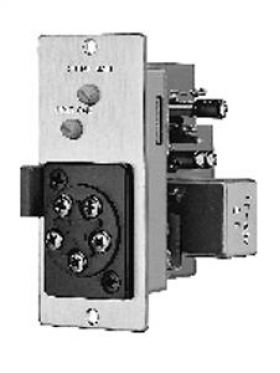

T-12S Line Output

T-12S

The T-12S is an AUX module to be used in conjunction with the 900 series. It has a balanced line output, as well as an input that can control muting operations of a signal output.



QTY: Add to Request for quote Request for quote
Specification
Power Source 24 VDC
Current Consumption Less than 38 mA
Input Sensitivity (Rated Output 100 mV ) 100 - 1,000 mV (adjustable)
Noise Output (20 Hz - 20 kHz BPF) Less than 50 μV
Distortion Less than 0.1 %
Frequency Response 20 Hz - 20 kHz
Line Output Level 70 - 800 mV (adjustable)
Muting Time 3 - 5 s
Signal Muting Level More than 60 dB
Input Connector 5P screw terminal
Output Connector 6P card edge-connector
Dimensions 35 (W) × 78 (H) × 88 (D) mm
Weight 95 g
