Q-RM9012

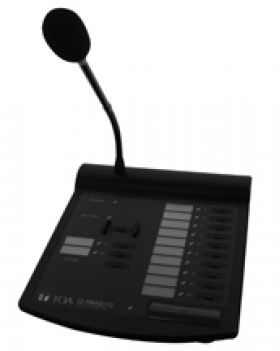

Q-RM9012 Remote Microphone

Q-RM9012

Q-RM9012 is a remote microphone used in conjunction with 9000M2 Series Mixer Amplifiers or other paging equipment. Output is up to 12 contact closures together with balanced audio signal in order to initiate / terminate the paging. This unit requires DC 24V power supply.





QTY: Add to Request for quote Request for quote

Specifications:

Power Source 24 V DC from AC adaptor AD-246 or the equivalent
Power Consumption 80mA or less
Audio Output 0 dB*, 600Ω transformer balanced, RJ45 connector
Distortion 1% or less
Frequency Response 100-20,000Hz
S/N Ratio 60dB or more
Microphone Unidirectional electret condenser microphone
Control Output 12 channels, open collector output, withstand voltage: 27V DC, control current: max. 50 mA, (2) RJ45 connectors
Number of Keys 12 zone selection keys, all call key, cancel key, talk key
Volume Control Microphone volume control
Operating Temperature -10°C to +40°C (14°F to 104°F)
 Finish ABS resin, black
Dimensions 190 (W) x 76.5 (H) x 215 (D) mm (7.48" x 3.01" x 8.46") (Gooseneck microphone excluded)
Weight 750g (1.65 lbs)
Option AC- Adaptor: AD-246
