Q-SS9012

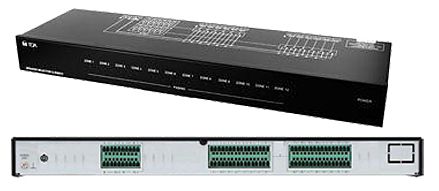

Q-SS9012 Speaker Selector

Q-SS9012
Q-SS9012 is a speaker selector used in conjunction with 9000M2 Series mixer amplifiers or other paging equipment. It selectively distributes each of 2 amplified inputs of the same 12 output zones by the status of corresponding contact closure input. It requires DC 24V power supply (AC Adapter, AD-246 or equivalent).
  • 12 contact inputs and 12 speaker outputs. Power amp input is split into 12 zones with activation via contact closure
  • Possible to expand number of 9000M2 paging zones along with conventional output zones (T-001T) for up to 19 zones
  • Can facilitate paging over BGM by switching between BGM output (amp input 2) and Page output (amp input 1)
  • May work with internal or external amplifier
  • 19" rack-mountable (using optional MB-15B)





QTY: Add to Request for quote Request for quote

Specifications:

Power Source 24 V DC from AC adaptor AD-246 or equivalent
Power Consumption 400mA or less
Power Handling 250W or less (70V/100V line per channel (IN1, IN2)
Control Input 12 channels, dry (no voltage) contact closures, open voltage: 3.3V DC, short-circuit current: under 1 mA, removable terminal block (24 pins)
Speaker Terminal Removable terminal block (2 pins, IN1, IN2, Zone 1-12)
Control Terminal Removable terminal block (24 pins)
Operating Temperature -10°C to +40°C (14°F to 104°F)
 Finish Case: Surface-treated steel plate, black
 Dimensions 420 (W) x 44 (H) x 123 (D) mm (16.54" x 1.73" x 4.84")
 Weight 1.6kg (3.52 lbs)
Accessory

Removable terminal plug...2
Removable terminal plug...3
Removable terminal plug...1
Option

AC adaptor: AD-246, Rack mount bracket: MB-15B, Wall mount bracket: YC-850
